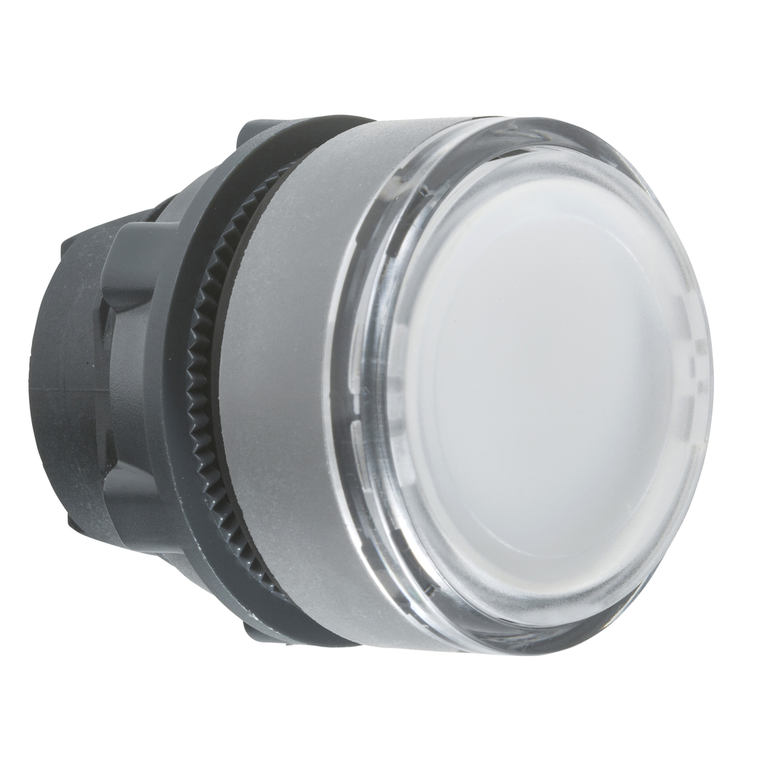

Schneider Electric ZB5AH0183C0 Double Ill. Pushbutton He
Schneider Electric
$19.74
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This illuminated button head for integral LED provides a versatile interface for controlling your machines. It is easily installed/replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illum. clear color and by touch due to flush element, minimizing errors in machine control. It is imapct, dust, water and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
- Operator Additional Information:
- for insertion of legend
- Mercury Free:
- Yes
- Operator Profile:
- white flush, unmarked
- Shape Of Signaling Unit Head:
- round
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Device Short Name:
- ZB5
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Product Certifications:
- LROS (Lloyds register of shipping) || UL Listed || GL || BV || DNV || CSA
- Electrical Shock Protection Class:
- class II IEC 60536
- Sale Per Indivisible Quantity:
- 1
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Cad Overall Depth:
- 30 mm
- China Rohs Regulation:
- X
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Product Compatibility:
- integral LED
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Range Of Product:
- Harmony XB5
- Head Type:
- standard
- Cad Overall Width:
- 29 mm
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Toxic Heavy Metal Free:
- Yes
- Product Or Component Type:
- head for illuminated push-button
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ambient Air Temperature For Storage:
- -40-70 °C
- Mechanical Durability:
- 5000000 cycles
- Rohs Exemption Information:
- Yes
- Electrical Composition Code:
- M5 2 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED
- Ip Degree Of Protection:
- IP66 IEC 60529
- Protective Treatment:
- TH
- Standards:
- EN/IEC 60947-1 || JIS C8201-5-1 || UL 508 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-5 || EN/IEC 60947-5-4 || JIS C8201-1
- Device Presentation:
- basic element
- Mounting Diameter:
- 22 mm
- Ik Degree Of Protection:
- IK05 IEC 50102
- Type Of Operator:
- push-push
- Cad Overall Height:
- 29 mm
- Reach Free Of Svhc:
- Yes
- Ambient Air Temperature For Operation:
- -25-70 °C
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Bezel Material:
- plastic colour plated grey
- Datasheet:
- View
