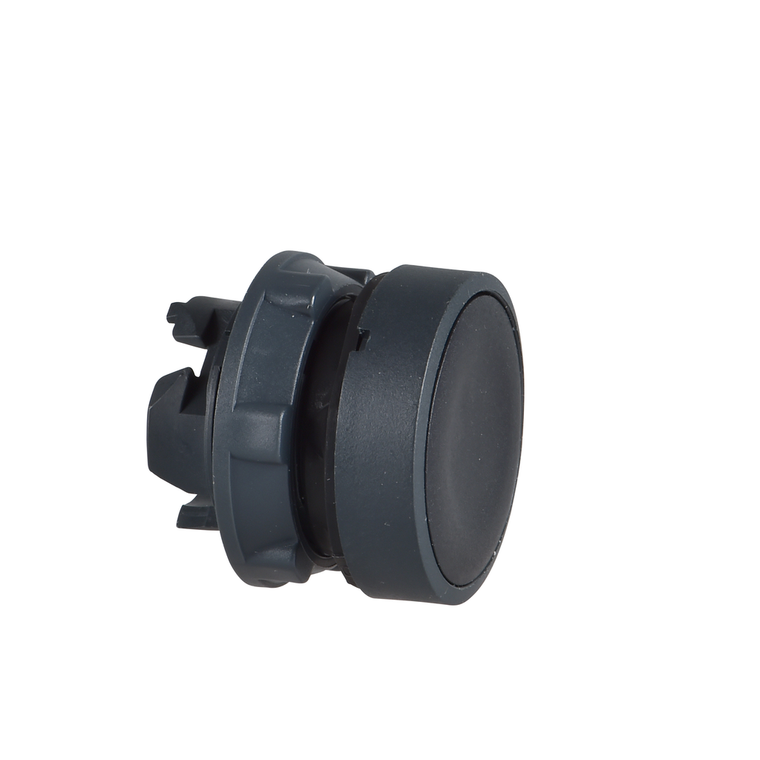

Schneider Electric ZB5AH02 Push / Push To Release He
Schneider Electric
$17.60
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This black flush button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free:
- Yes
- Cad Overall Height:
- 29 mm
- Electrical Composition Code:
- C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting || C9 3 single front mounting
- Environmental Disclosure:
- ENVPEP1710010EN
- Ambient Air Temperature For Storage:
- -40-70 °C
- Mounting Diameter:
- 22 mm
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Operator Profile:
- black flush, unmarked
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Warranty:
- 18 months
- Standards:
- IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-1 || UL 508 || JIS C8201-5-1 || IEC 60947-5-4 || JIS C8201-1
- Cad Overall Width:
- 29 mm
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation:
- X
- Product Certifications:
- GL || DNV || UL Listed || CSA || BV || LROS (Lloyds register of shipping)
- Cad Overall Depth:
- 28 mm
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Device Short Name:
- ZB5
- Head Type:
- standard
- Type Of Operator:
- push-push
- Device Presentation:
- basic element
- Net Weight:
- 0.018 kg
- Range Of Product:
- Harmony XB5
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Shape Of Signaling Unit Head:
- round
- Circularity Profile:
- ENVEOLI1710010EN
- Rohs Exemption Information:
- Yes
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Bezel Material:
- dark grey plastic
- Ambient Air Temperature For Operation:
- -40-70 °C
- Overvoltage Category:
- class II IEC 60536
- Sustainable Offer Status:
- Green Premium product
- Protective Treatment:
- TH
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Mechanical Durability:
- 2000000 cycles
- Sale Per Indivisible Quantity:
- 1
- Product Or Component Type:
- head for non-illuminated push-button
- Ik Degree Of Protection:
- IK03 IEC 50102
- Datasheet:
- View
