Schneider Electric ZB5AH033 Double Ill. Pushbutton He

Schneider Electric ZB5AH033 Double Ill. Pushbutton He

Schneider Electric
SKU:
ZB5AH033
|
UPC:
3389110137705
Availability:
Contact us to confirm availability and lead times.
$24.80
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

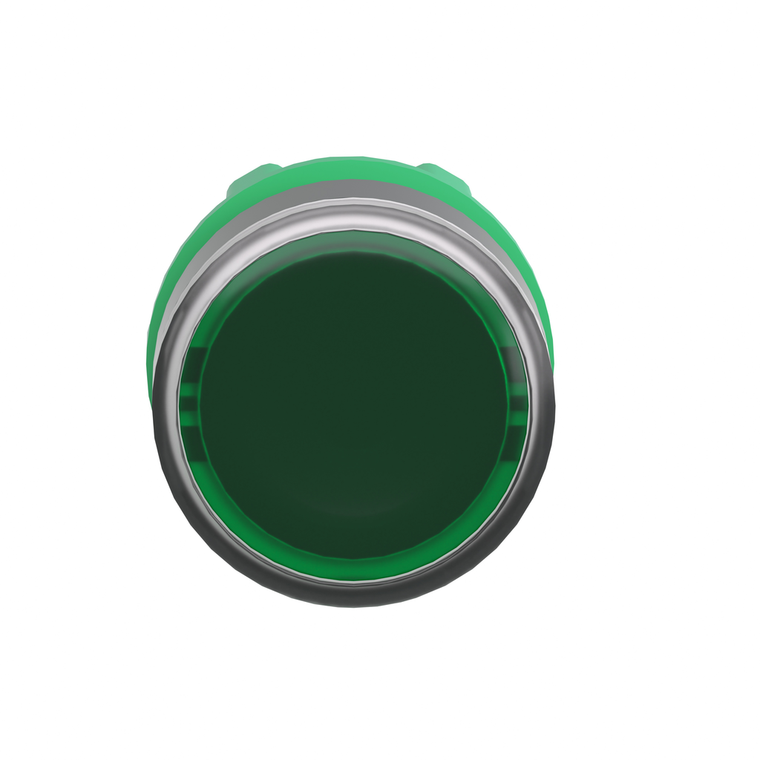

This illuminated green flush button head for universal LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is very distinguishable visually at a distance thanks to illuminated, clear color and by touch due to flush element. It minimizes errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Additional Information
Standards:
IEC 60947-1 || CSA C22.2 No 14 || IEC 60947-5-1 || UL 508 || IEC 60947-5-4 || IEC 60947-5-5 || JIS C8201-5-1 || JIS C8201-1
Ik Degree Of Protection:
IK05 IEC 50102
Cad Overall Width:
29 mm
Mechanical Durability:
5000000 cycles
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Operator Profile:
green flush, unmarked
Mounting Diameter:
22 mm
Sale Per Indivisible Quantity:
1
Ambient Air Temperature For Operation:
-25-70 °C
Cad Overall Height:
29 mm
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Circularity Profile:
ENVEOLI1710010EN
Device Presentation:
basic element
China Rohs Regulation:
X
Type Of Operator:
push-push
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653
Environmental Disclosure:
ENVPEP1710010EN
Protective Treatment:
TH
Bezel Material:
dark grey plastic
Product Compatibility:
universal LED
Sustainable Offer Status:
Green Premium product
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Mercury Free:
Yes
Device Short Name:
ZB5
Ambient Air Temperature For Storage:
-40-70 °C
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Station Name:
XALD 1...5 cut-outs || XALK 2...5 cut-outs
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Head Type:
standard
Electrical Composition Code:
M5 2 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED
Cad Overall Depth:
30 mm
Product Or Component Type:
head for illuminated push-button
Net Weight:
0.017 kg
Product Certifications:
LROS (Lloyds register of shipping) || CSA || UL Listed || BV || DNV || GL
Electrical Shock Protection Class:
class II IEC 60536
Range Of Product:
Harmony XB5
Important Message:
A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Warranty:
18 months
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Rohs Exemption Information:
Yes
Shape Of Signaling Unit Head:
round
