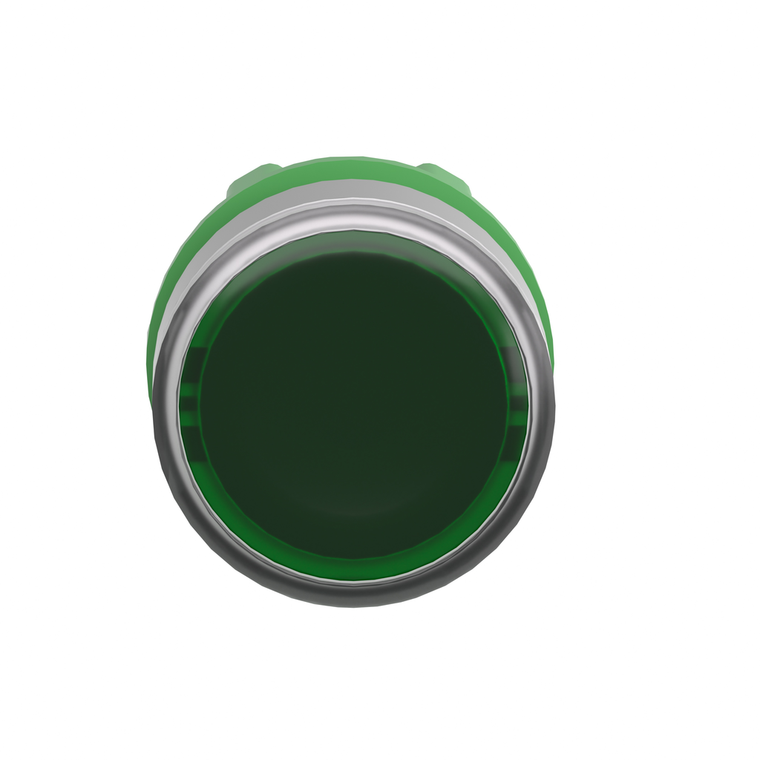

Schneider Electric ZB5AH0383C0 Double Ill. Pushbutton He
This illuminated button head for integral LED provides a versatile interface for controlling your machines. It is easily installed/replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illum. clear color and by touch due to flush element, minimizing errors in machine control. It is imapct, dust, water and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
- Electrical Composition Code:
- M5 2 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED
- Cad Overall Width:
- 29 mm
- Head Type:
- standard
- Standards:
- UL 508 || IEC 60947-5-1 || IEC 60947-5-5 || JIS C8201-5-1 || CSA C22.2 No 14 || IEC 60947-1 || IEC 60947-5-4 || JIS C8201-1
- Mounting Diameter:
- 22 mm
- Important Message:
- Viktig information: en förändring i utseendet kan observeras på produkten, men detta påverkar inte dess användning i termer av funktion och säkerhet. Detta gör den kompatibel med våra Universal LED-block
- Mercury Free:
- Yes
- Type Of Operator:
- push-push
- Ip Degree Of Protection:
- IP66 IEC 60529
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Bezel Material:
- plastic colour plated grey
- Mechanical Durability:
- 5000000 cycles
- Device Presentation:
- basic element
- Reach Free Of Svhc:
- Yes
- Cad Overall Height:
- 29 mm
- Toxic Heavy Metal Free:
- Yes
- Product Compatibility:
- integral LED
- Ambient Air Temperature For Operation:
- -25-70 °C
- Product Or Component Type:
- head for illuminated push-button
- Cad Overall Depth:
- 30 mm
- Range Of Product:
- Harmony XB5
- Product Certifications:
- LROS (Lloyds register of shipping) || GL || UL Listed || CSA || BV || DNV
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- China Rohs Regulation:
- X
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Sale Per Indivisible Quantity:
- 1
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Ambient Air Temperature For Storage:
- -40-70 °C
- Operator Profile:
- green flush, unmarked
- Ik Degree Of Protection:
- IK05 IEC 50102
- Rohs Exemption Information:
- Yes
- Device Short Name:
- ZB5
- Protective Treatment:
- TH
- Shape Of Signaling Unit Head:
- round
- Operator Additional Information:
- for insertion of legend
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Electrical Shock Protection Class:
- class II IEC 60536
