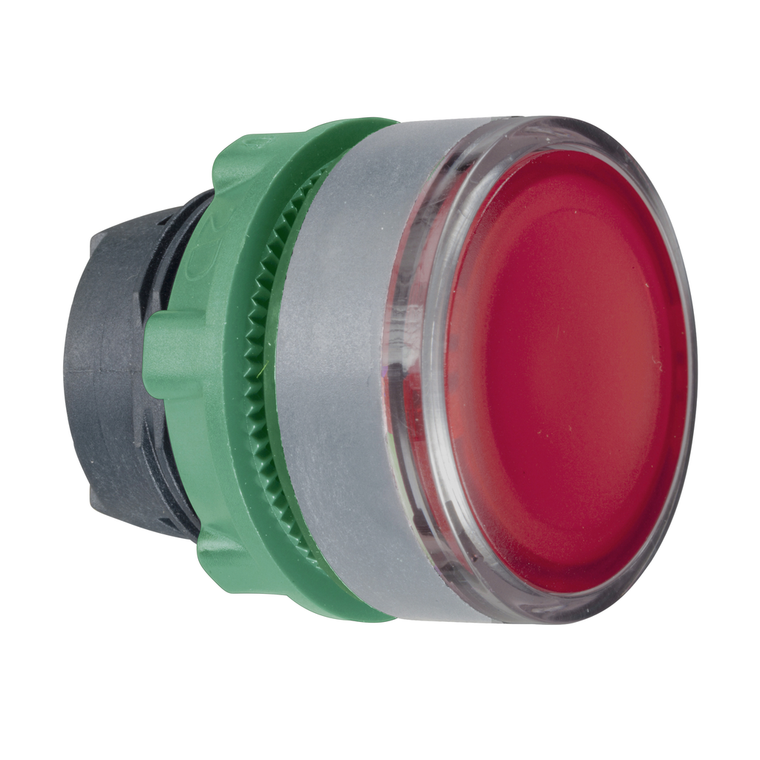

Schneider Electric ZB5AH043C0 Double Ill. Pushbutton He
Schneider Electric
$33.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed/replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illum. clear color and by touch due to flush element, minimizing errors in machine control. It is imapct, dust, water and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
- Ambient Air Temperature For Storage:
- -40-70 °C
- Operator Profile:
- red flush, unmarked
- Cad Overall Depth:
- 30 mm
- Type Of Operator:
- push-push
- Electrical Shock Protection Class:
- class II IEC 60536
- Range Of Product:
- Harmony XB5
- Toxic Heavy Metal Free:
- Yes
- Standards:
- EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-5 || UL 508 || EN/IEC 60947-5-4 || JIS C8201-5-1 || JIS C8201-1
- Protective Treatment:
- TH
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- China Rohs Regulation:
- X
- Ambient Air Temperature For Operation:
- -25-70 °C
- Rohs Exemption Information:
- Yes
- Net Weight:
- 0.017 kg
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Product Compatibility:
- universal LED
- Sale Per Indivisible Quantity:
- 1
- Bezel Material:
- plastic colour plated grey
- Mechanical Durability:
- 5000000 cycles
- Head Type:
- standard
- Device Presentation:
- basic element
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Product Certifications:
- DNV || GL || LROS (Lloyds register of shipping) || CSA || BV || UL Listed
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Mounting Diameter:
- 22 mm
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Shape Of Signaling Unit Head:
- round
- Cad Overall Height:
- 29 mm
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Electrical Composition Code:
- M5 2 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED
- Product Or Component Type:
- head for illuminated push-button
- Ik Degree Of Protection:
- IK05 IEC 50102
- Cad Overall Width:
- 29 mm
- Mercury Free:
- Yes
- Device Short Name:
- ZB5
- Reach Free Of Svhc:
- Yes
- Datasheet:
- View
