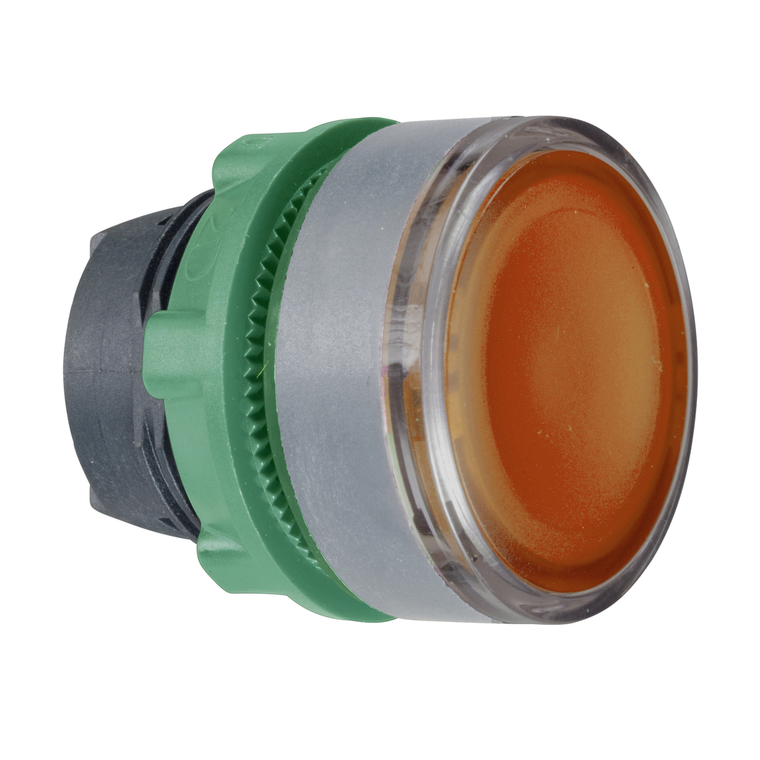

Schneider Electric ZB5AH053C0 Double Ill. Pushbutton He

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB5AH053C0 Double Ill. Pushbutton He

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5AH053C0

UPC:

3606489766702

MPN:

Condition:

New

Net Weight:

0.017 kg

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Product Compatibility:

universal LED

Cad Overall Width:

29 mm

Shape Of Signaling Unit Head:

round

Sale Per Indivisible Quantity:

1

Electrical Shock Protection Class:

class II IEC 60536

Standards:

JIS C8201-5-1 || EN/IEC 60947-5-5 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || UL 508 || JIS C8201-1

Operator Profile:

orange flush, unmarked

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Electrical Composition Code:

M5 2 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED

Rohs Exemption Information:

Yes

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Device Short Name:

ZB5

Protective Treatment:

TH

Toxic Heavy Metal Free:

Yes

Reach Free Of Svhc:

Yes

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Cad Overall Height:

29 mm

Head Type:

standard

Device Presentation:

basic element

Ik Degree Of Protection:

IK05 IEC 50102

Ambient Air Temperature For Operation:

-25-70 °C

Mounting Diameter:

22 mm

Cad Overall Depth:

30 mm

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Product Certifications:

BV || DNV || UL Listed || GL || CSA || LROS (Lloyds register of shipping)

Ambient Air Temperature For Storage:

-40-70 °C

Range Of Product:

Harmony XB5

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Mechanical Durability:

5000000 cycles

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 IEC 60529

Mercury Free:

Yes

Station Name:

XALD 1...5 cut-outs || XALK 2...5 cut-outs

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Bezel Material:

plastic colour plated grey

Type Of Operator:

push-push

China Rohs Regulation:

X

Product Or Component Type:

head for illuminated push-button
