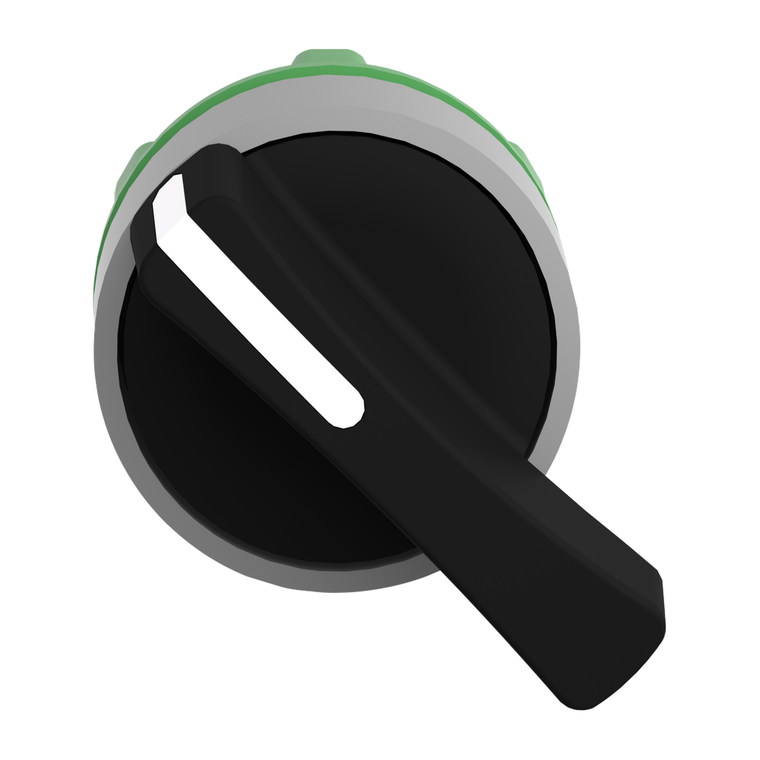

Schneider Electric ZB5AJ2C0 Selector Operating Head
This switch head with long handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K, making it ideal for operation in harsh environments.
- Range Of Product:
- Harmony XB5
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1
- Operator Additional Information:
- non padlockable
- Ip Degree Of Protection:
- IP67 IEC 60529
- Cad Overall Height:
- 38 mm
- Rohs Exemption Information:
- Yes
- Ambient Air Temperature For Operation:
- -40-70 °C
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Operator Position Information:
- 2 positions 90°
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Mercury Free:
- Yes
- Product Or Component Type:
- head for selector switch
- Cad Overall Width:
- 29 mm
- Cad Overall Depth:
- 46 mm
- Ik Degree Of Protection:
- IK06 IEC 50102
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Shape Of Signaling Unit Head:
- round
- Bezel Material:
- plastic colour plated grey
- Mechanical Durability:
- 1000000 cycles
- China Rohs Regulation:
- X
- Toxic Heavy Metal Free:
- Yes
- Protective Treatment:
- TH
- Overvoltage Category:
- class II IEC 60536
- Device Presentation:
- basic element
- Head Type:
- standard
- Ambient Air Temperature For Storage:
- -40-70 °C
- Device Short Name:
- ZB5
- Product Certifications:
- LROS (Lloyds register of shipping) || GL || CSA || BV || DNV || UL Listed
- Reach Free Of Svhc:
- Yes
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Net Weight:
- 0.017 kg
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Standards:
- EN/IEC 60947-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || JIS C8201-5-1 || UL 508 || JIS C8201-1
- Sale Per Indivisible Quantity:
- 1
- Type Of Operator:
- stay put
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mounting Diameter:
- 22 mm
- Operator Profile:
- black long handle
