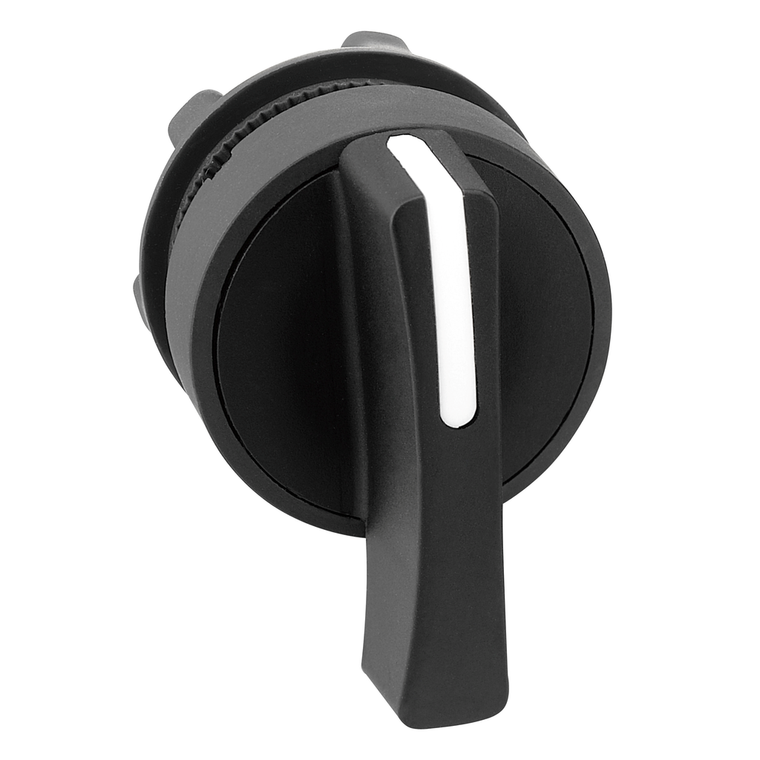

Schneider Electric ZB5AJ8 Selector Operating Head
Schneider Electric
$32.41
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This black switch head with long handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It makes it ideal for operation in harsh environments.
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Free Of Svhc:
- Yes
- Mechanical Durability:
- 1000000 cycles
- Cad Overall Depth:
- 46 mm
- Mounting Diameter:
- 22 mm
- Head Type:
- standard
- Operator Position Information:
- 3 positions +/- 45°
- Type Of Operator:
- right to centre spring return
- Toxic Heavy Metal Free:
- Yes
- Ambient Air Temperature For Operation:
- -40-70 °C
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Cad Overall Width:
- 29 mm
- Standards:
- EN/IEC 60947-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || UL 508 || EN/IEC 60947-5-4 || JIS C8201-5-1 || JIS C8201-1
- Ik Degree Of Protection:
- IK06 IEC 50102
- Overvoltage Category:
- class II IEC 60536
- Net Weight:
- 0.017 kg
- Shape Of Signaling Unit Head:
- round
- Operator Profile:
- black long handle
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Operator Additional Information:
- non padlockable
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Bezel Material:
- dark grey plastic
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || SF1 3
- China Rohs Regulation:
- X
- Ambient Air Temperature For Storage:
- -40-70 °C
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Product Certifications:
- BV || GL || UL Listed || LROS (Lloyds register of shipping) || CSA || DNV
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Cad Overall Height:
- 38 mm
- Range Of Product:
- Harmony XB5
- Device Presentation:
- basic element
- Sale Per Indivisible Quantity:
- 1
- Protective Treatment:
- TH
- Circularity Profile:
- ENVEOLI1710010EN
- Rohs Exemption Information:
- Yes
- Warranty:
- 18 months
- Device Short Name:
- ZB5
- Product Or Component Type:
- head for selector switch
- Sustainable Offer Status:
- Green Premium product
- Mercury Free:
- Yes
- Environmental Disclosure:
- ENVPEP1710010EN
- Ip Degree Of Protection:
- IP67 IEC 60529 || IP69 IEC 60529 || IP69K
