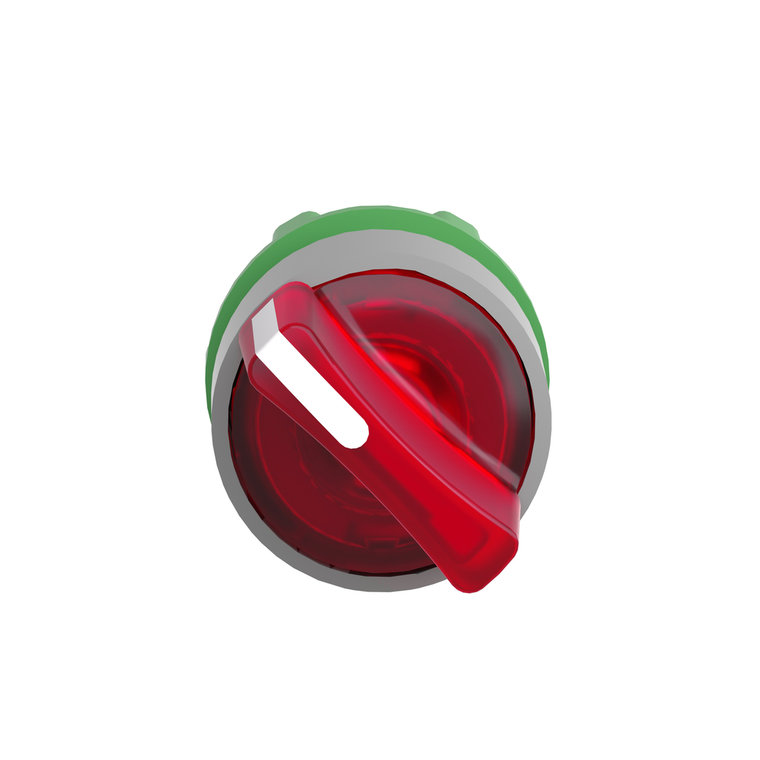

Schneider Electric ZB5AK1243C0 Selector Ill. Pushbotton

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB5AK1243C0 Selector Ill. Pushbotton

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5AK1243C0

UPC:

3606489767228

MPN:

Condition:

New

Mercury Free:

Yes

Operator Profile:

red standard handle

Ik Degree Of Protection:

IK04 IEC 50102

Operator Position Information:

2 positions 90°

Reach Free Of Svhc:

Yes

Toxic Heavy Metal Free:

Yes

Standards:

EN/IEC 60947-5-5 || UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-5-1 || JIS C8201-1

Cad Overall Depth:

43 mm

Range Of Product:

Harmony XB5

Protective Treatment:

TH

Product Or Component Type:

head for illuminated selector switch

Product Compatibility:

universal LED

Station Name:

XALD 1...5 cut-outs || XALK 2...5 cut-outs

Bezel Material:

plastic colour plated grey

Net Weight:

0.016 kg

Mounting Diameter:

22 mm

Rohs Exemption Information:

Yes

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Device Presentation:

basic element

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Electrical Composition Code:

M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED || M4 4 single and d

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Ambient Air Temperature For Operation:

-40-70 °C

Product Certifications:

GL || LROS (Lloyds register of shipping) || UL Listed || BV || DNV || CSA

Overvoltage Category:

class II IEC 60536

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Device Short Name:

ZB5

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Type Of Operator:

stay put

Shape Of Signaling Unit Head:

round

China Rohs Regulation:

X

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Cad Overall Height:

29 mm

Ambient Air Temperature For Storage:

-40-70 °C

Sale Per Indivisible Quantity:

1

Head Type:

standard

Cad Overall Width:

29 mm

Mechanical Durability:

1000000 cycles

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Ip Degree Of Protection:

IP66 IEC 60529 || IP67
