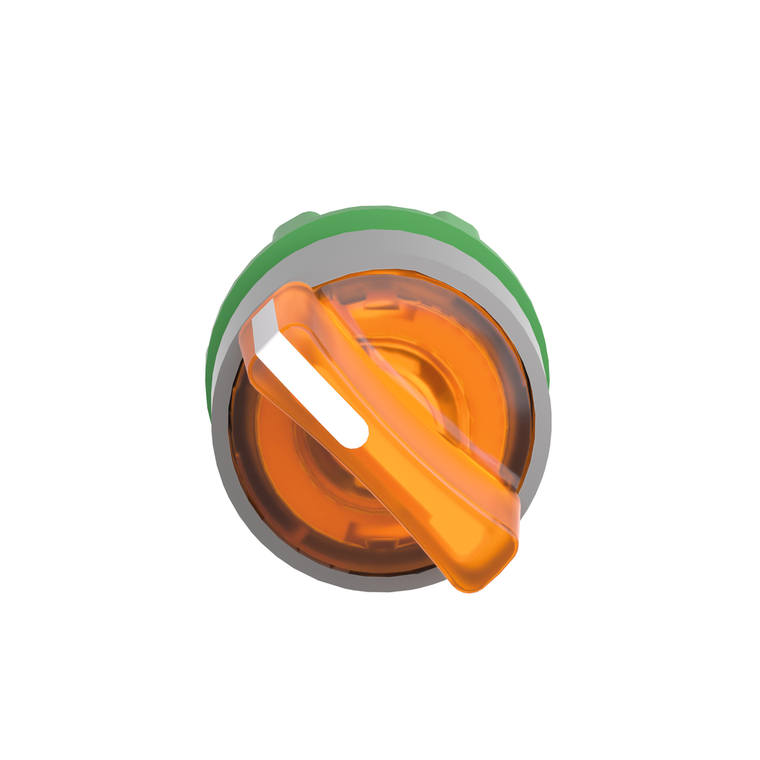

Schneider Electric ZB5AK1253C0 Selector Ill. Pushbotton

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB5AK1253C0 Selector Ill. Pushbotton

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5AK1253C0

UPC:

3606489767242

MPN:

Condition:

New

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Cad Overall Width:

29 mm

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Operator Profile:

orange standard handle

Cad Overall Height:

29 mm

Mechanical Durability:

1000000 cycles

Bezel Material:

plastic colour plated grey

Product Or Component Type:

head for illuminated selector switch

Overvoltage Category:

class II IEC 60536

Mercury Free:

Yes

Ambient Air Temperature For Operation:

-40-70 °C

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Electrical Composition Code:

M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED || M4 4 single and d

Head Type:

standard

Toxic Heavy Metal Free:

Yes

Rohs Exemption Information:

Yes

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Device Short Name:

ZB5

Sale Per Indivisible Quantity:

1

Product Compatibility:

universal LED

Shape Of Signaling Unit Head:

round

Operator Position Information:

2 positions 90°

Standards:

EN/IEC 60947-5-5 || EN/IEC 60947-1 || JIS C8201-5-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || UL 508 || JIS C8201-1

Ip Degree Of Protection:

IP66 IEC 60529 || IP67

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Cad Overall Depth:

43 mm

Ik Degree Of Protection:

IK04 IEC 50102

Mounting Diameter:

22 mm

Protective Treatment:

TH

Reach Free Of Svhc:

Yes

Station Name:

XALD 1...5 cut-outs || XALK 2...5 cut-outs

China Rohs Regulation:

X

Range Of Product:

Harmony XB5

Product Certifications:

BV || CSA || UL Listed || DNV || LROS (Lloyds register of shipping) || GL

Net Weight:

0.016 kg

Type Of Operator:

stay put

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Device Presentation:

basic element

Ambient Air Temperature For Storage:

-40-70 °C

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Datasheet:

View
