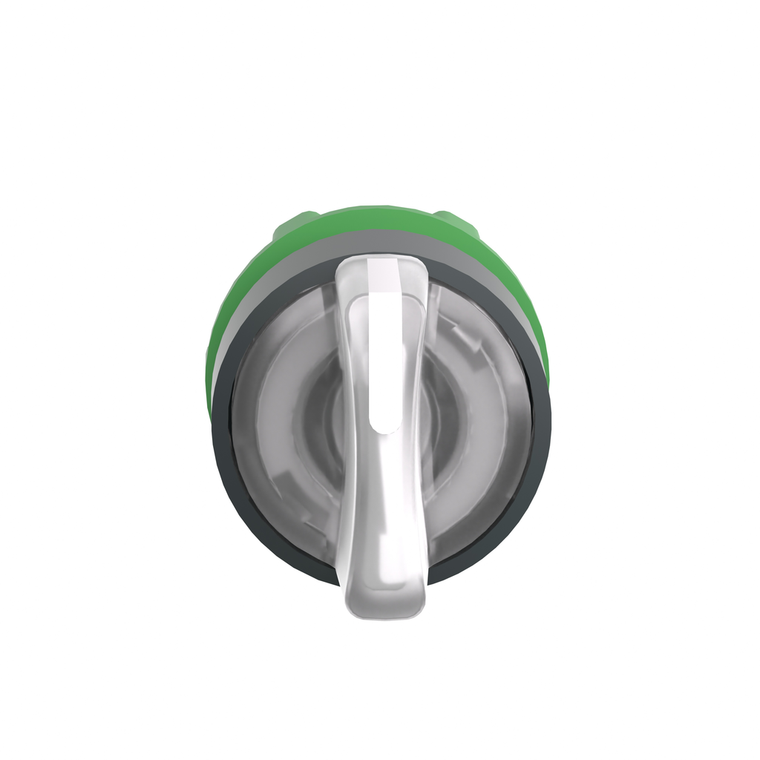

Schneider Electric ZB5AK1313 Selector Ill. Pushbotton
Schneider Electric
$35.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB5AK1313 Selector Ill. Pushbotton
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This white illuminated switch head for universal LED provides an ergonomic interface for controlling your machines. It is supplied with standard handle and can easily be installed on compatible selector switch units. It provides a clear help in setting your machines in various operating modes, even in darker control rooms. It offers a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It makes it ideal for operation in harsh environments.
- Cad Overall Width:
- 29 mm
- Ik Degree Of Protection:
- IK04 IEC 50102
- Cad Overall Depth:
- 43 mm
- Cad Overall Height:
- 29 mm
- Head Type:
- standard
- Electrical Composition Code:
- M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED || M4 4 single and d
- Standards:
- EN/IEC 60947-1 || EN/IEC 60947-5-1 || UL 508 || CSA C22.2 No 14 || EN/IEC 60947-5-5 || JIS C8201-5-1 || EN/IEC 60947-5-4 || JIS C8201-1
- Operator Position Information:
- 3 positions +/- 45°
- Range Of Product:
- Harmony XB5
- Bezel Material:
- dark grey plastic
- Sale Per Indivisible Quantity:
- 1
- Device Presentation:
- basic element
- Environmental Disclosure:
- ENVPEP1710010EN
- Operator Profile:
- white standard handle
- Mercury Free:
- Yes
- Toxic Heavy Metal Free:
- Yes
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Product Compatibility:
- universal LED
- Net Weight:
- 0.016 kg
- Ambient Air Temperature For Operation:
- -40-70 °C
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Warranty:
- 18 months
- Reach Free Of Svhc:
- Yes
- Device Short Name:
- ZB5
- China Rohs Regulation:
- X
- Sustainable Offer Status:
- Green Premium product
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Protective Treatment:
- TH
- Type Of Operator:
- stay put
- Overvoltage Category:
- class II IEC 60536
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Product Or Component Type:
- head for illuminated selector switch
- Rohs Exemption Information:
- Yes
- Circularity Profile:
- ENVEOLI1710010EN
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Mounting Diameter:
- 22 mm
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Shape Of Signaling Unit Head:
- round
- Product Certifications:
- CSA || UL Listed || DNV || LROS (Lloyds register of shipping) || GL || BV
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage:
- -40-70 °C
- Mechanical Durability:
- 500000 cycles
- Datasheet:
- View
