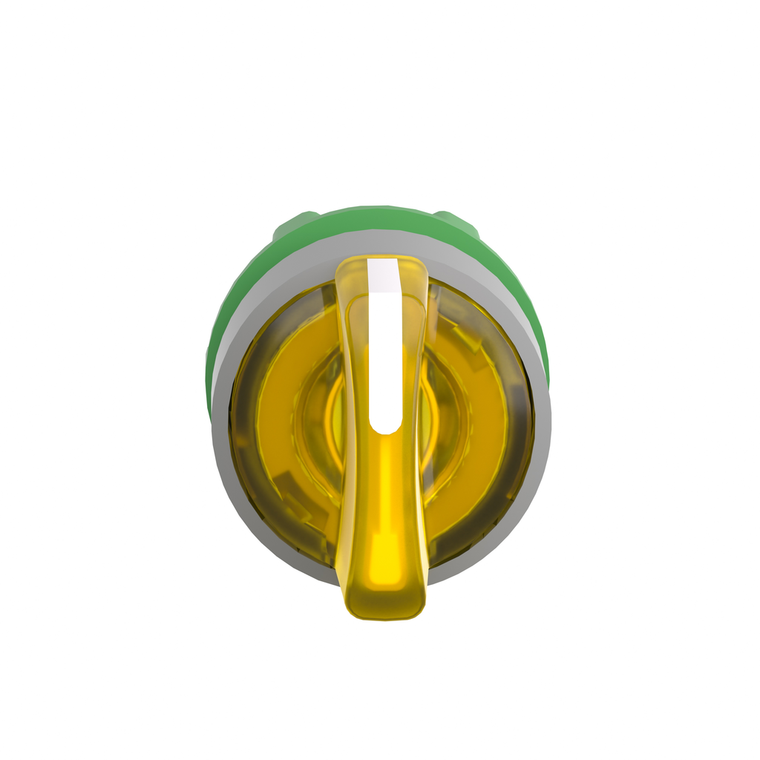

Schneider Electric ZB5AK1383C0 Xb5 Yellow Slector Switch 3 Pos.
Schneider Electric
$41.18
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This illuminated switch head for universal LED provides an ergonomic interface for controlling your machines. It is supplied with standard handle and can easily be installed on compatible selector switch units. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K, making it ideal for operation in harsh environments.
- Mercury Free:
- Yes
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Protective Treatment:
- TH
- Bezel Material:
- plastic colour plated grey
- Product Certifications:
- DNV || CSA || LROS (Lloyds register of shipping) || UL Listed || GL || BV
- Type Of Operator:
- stay put
- Operator Profile:
- yellow standard handle
- Overvoltage Category:
- class II IEC 60536
- Mounting Diameter:
- 22 mm
- Mechanical Durability:
- 500000 cycles
- Reach Free Of Svhc:
- Yes
- Sale Per Indivisible Quantity:
- 1
- Ambient Air Temperature For Storage:
- -40-70 °C
- Range Of Product:
- Harmony XB5
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Product Or Component Type:
- head for illuminated selector switch
- Shape Of Signaling Unit Head:
- round
- Standards:
- UL 508 || EN/IEC 60947-5-5 || JIS C8201-5-1 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || JIS C8201-1
- Cad Overall Height:
- 29 mm
- Electrical Composition Code:
- M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED || M4 4 single and d
- Net Weight:
- 0.016 kg
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Cad Overall Width:
- 29 mm
- Product Compatibility:
- universal LED
- Cad Overall Depth:
- 43 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ik Degree Of Protection:
- IK04 IEC 50102
- Rohs Exemption Information:
- Yes
- Device Short Name:
- ZB5
- China Rohs Regulation:
- X
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67
- Toxic Heavy Metal Free:
- Yes
- Device Presentation:
- basic element
- Operator Position Information:
- 3 positions +/- 45°
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Operation:
- -40-70 °C
- Datasheet:
- View
