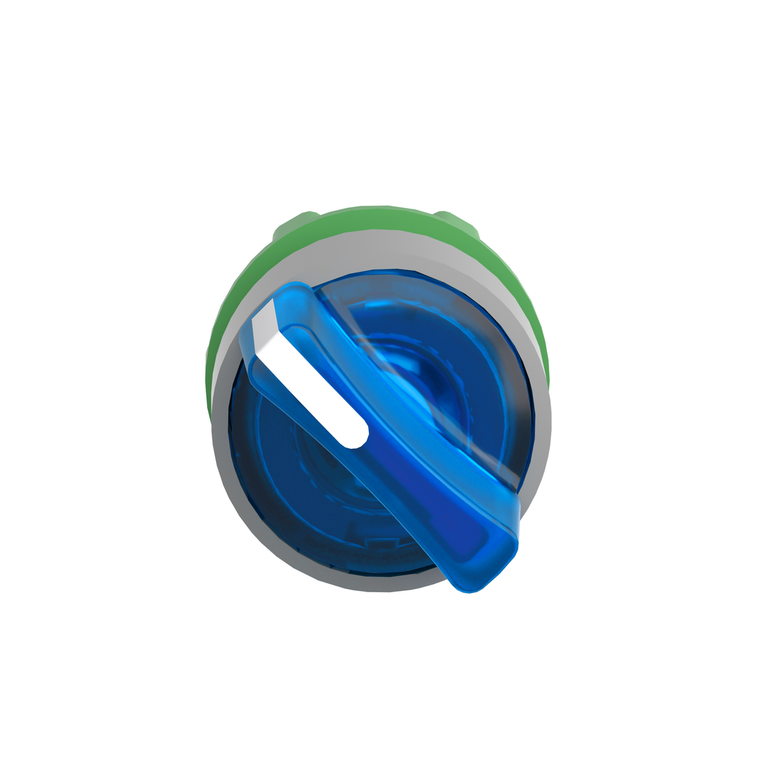

Schneider Electric ZB5AK1463C0 Selector Ill. Pushbotton
This illuminated switch head for universal LED provides an ergonomic interface for controlling your machines. It is supplied with standard handle and can easily be installed on compatible selector switch units. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K, making it ideal for operation in harsh environments.
- Type Of Operator:
- right to left spring return
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Overvoltage Category:
- class II IEC 60536
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67
- Toxic Heavy Metal Free:
- Yes
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Device Short Name:
- ZB5
- Sale Per Indivisible Quantity:
- 1
- Protective Treatment:
- TH
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Product Compatibility:
- universal LED
- Reach Free Of Svhc:
- Yes
- China Rohs Regulation:
- X
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Shape Of Signaling Unit Head:
- round
- Head Type:
- standard
- Ambient Air Temperature For Operation:
- -40-70 °C
- Electrical Composition Code:
- M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED || M4 4 single and d
- Bezel Material:
- plastic colour plated grey
- Operator Position Information:
- 2 positions 90°
- Mounting Diameter:
- 22 mm
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Cad Overall Height:
- 29 mm
- Operator Profile:
- blue standard handle
- Device Presentation:
- basic element
- Product Or Component Type:
- head for illuminated selector switch
- Net Weight:
- 0.017 kg
- Ambient Air Temperature For Storage:
- -40-70 °C
- Standards:
- JIS C8201-5-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-5 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || UL 508 || JIS C8201-1
- Mercury Free:
- Yes
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Product Certifications:
- DNV || CSA || UL Listed || GL || BV || LROS (Lloyds register of shipping)
- Ik Degree Of Protection:
- IK04 IEC 50102
- Cad Overall Width:
- 29 mm
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Cad Overall Depth:
- 43 mm
- Mechanical Durability:
- 500000 cycles
- Range Of Product:
- Harmony XB5
- Rohs Exemption Information:
- Yes
