Schneider Electric ZB5AK1543 Selector Ill. Pushbotton

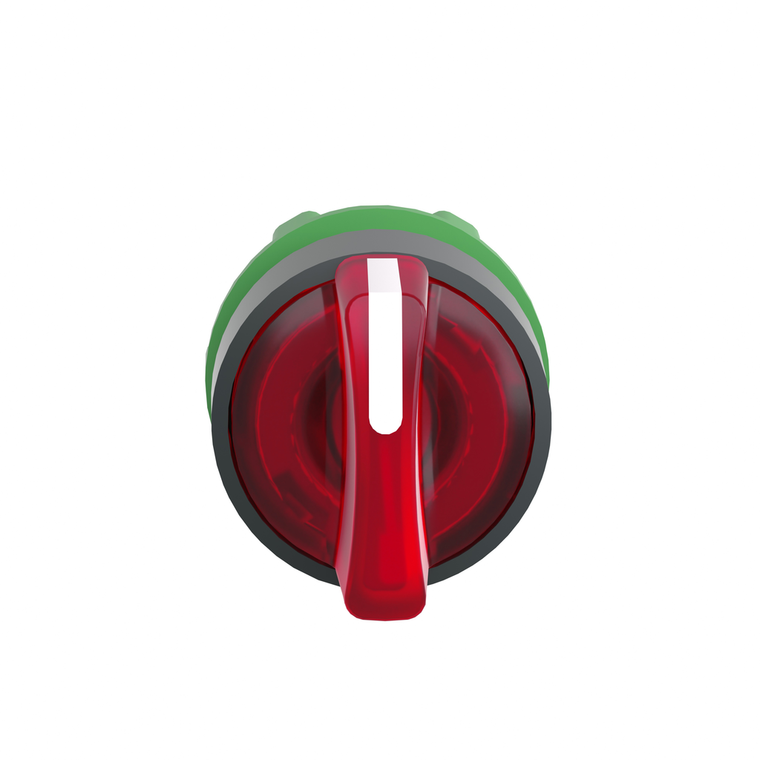

This red illuminated switch head for universal LED provides an ergonomic interface for controlling your machines. It is supplied with standard handle and can easily be installed on compatible selector switch units. It provides a clear help in setting your machines in various operating modes, even in darker control rooms. It offers a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It makes it ideal for operation in harsh environments.
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Cad Overall Width:
- 29 mm
- Type Of Operator:
- to centre spring return
- Circularity Profile:
- ENVEOLI1710010EN
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Mechanical Durability:
- 500000 cycles
- Environmental Disclosure:
- ENVPEP1710010EN
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Electrical Composition Code:
- M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED || M4 4 single and d
- Cad Overall Height:
- 29 mm
- Cad Overall Depth:
- 43 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Operator Profile:
- red standard handle
- Product Compatibility:
- universal LED
- Ik Degree Of Protection:
- IK04 IEC 50102
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Mercury Free:
- Yes
- Standards:
- EN/IEC 60947-5-1 || EN/IEC 60947-5-5 || CSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C8201-5-1 || UL 508 || JIS C8201-1
- Warranty:
- 18 months
- Device Presentation:
- basic element
- Net Weight:
- 0.016 kg
- Range Of Product:
- Harmony XB5
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Sale Per Indivisible Quantity:
- 1
- China Rohs Regulation:
- X
- Sustainable Offer Status:
- Green Premium product
- Rohs Exemption Information:
- Yes
- Ambient Air Temperature For Storage:
- -40-70 °C
- Bezel Material:
- dark grey plastic
- Overvoltage Category:
- class II IEC 60536
- Product Certifications:
- CSA || GL || DNV || LROS (Lloyds register of shipping) || BV || UL Listed
- Operator Position Information:
- 3 positions +/- 45°
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Ambient Air Temperature For Operation:
- -40-70 °C
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Protective Treatment:
- TH
- Toxic Heavy Metal Free:
- Yes
- Mounting Diameter:
- 22 mm
- Product Or Component Type:
- head for illuminated selector switch
- Shape Of Signaling Unit Head:
- round
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Device Short Name:
- ZB5
- Reach Free Of Svhc:
- Yes
- Head Type:
- standard
