Schneider Electric ZB5AK1553 Selector Ill. Pushbotton

Schneider Electric ZB5AK1553 Selector Ill. Pushbotton

Schneider Electric
SKU:
ZB5AK1553
|
UPC:
3389110906233
$51.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

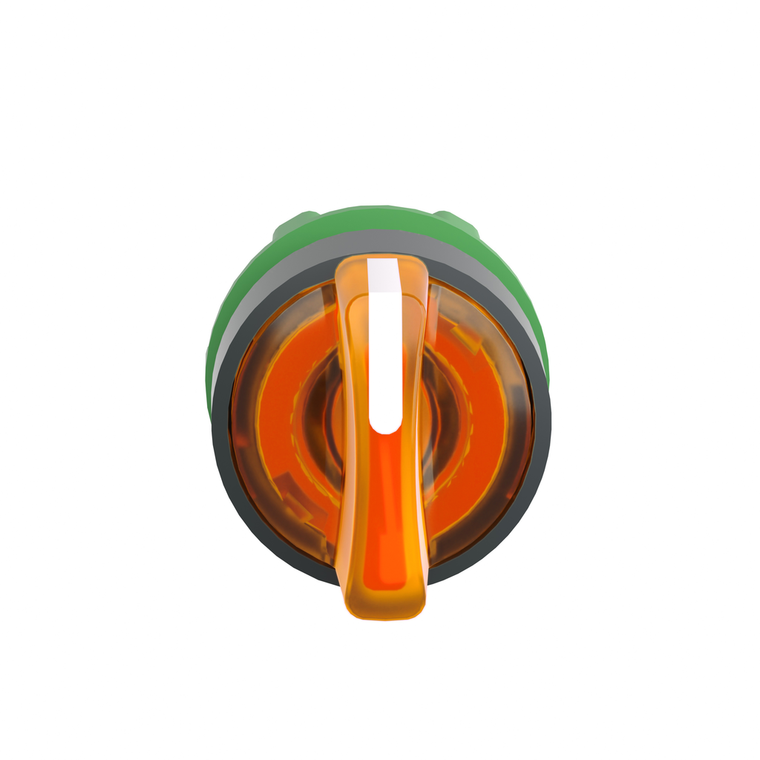

This Harmony XB5, illuminated orange selector switch head for universal LED with standard handle has 3 positions, operates with spring return to center mechanism. This illuminated switch head for universal LED provides an ergonomic interface for controlling your machines. It is supplied with standard handle and can easily be installed on compatible selector switch units. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.
Additional Information
Device Presentation:
basic element
Station Name:
XALD 1...5 cut-outs || XALK 2...5 cut-outs
Cad Overall Depth:
43 mm
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Standards:
EN/IEC 60947-5-5 || UL 508 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || JIS C8201-5-1 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || JIS C8201-1
Sustainable Offer Status:
Green Premium product
Type Of Operator:
to centre spring return
Bezel Material:
dark grey plastic
Environmental Disclosure:
ENVPEP1710010EN
Shape Of Signaling Unit Head:
round
Toxic Heavy Metal Free:
Yes
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ik Degree Of Protection:
IK04 IEC 50102
Product Certifications:
GL || CSA || LROS (Lloyds register of shipping) || BV || DNV || UL Listed
Product Or Component Type:
head for illuminated selector switch
Ambient Air Temperature For Storage:
-40-70 °C
Head Type:
standard
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Mounting Diameter:
22 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Important Message:
A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Protective Treatment:
TH
Warranty:
18 months
Sale Per Indivisible Quantity:
1
Electrical Composition Code:
M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED || M4 4 single and d
Rohs Exemption Information:
Yes
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 || IP69 || IP69K
Circularity Profile:
ENVEOLI1710010EN
Reach Free Of Svhc:
Yes
Product Compatibility:
universal LED
Overvoltage Category:
class II IEC 60536
Ambient Air Temperature For Operation:
-40-70 °C
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mechanical Durability:
500000 cycles
Cad Overall Width:
29 mm
Range Of Product:
Harmony XB5
Operator Position Information:
3 positions +/- 45°
Device Short Name:
ZB5
Cad Overall Height:
29 mm
Mercury Free:
Yes
Operator Profile:
orange standard handle
Net Weight:
0.016 kg
China Rohs Regulation:
X
