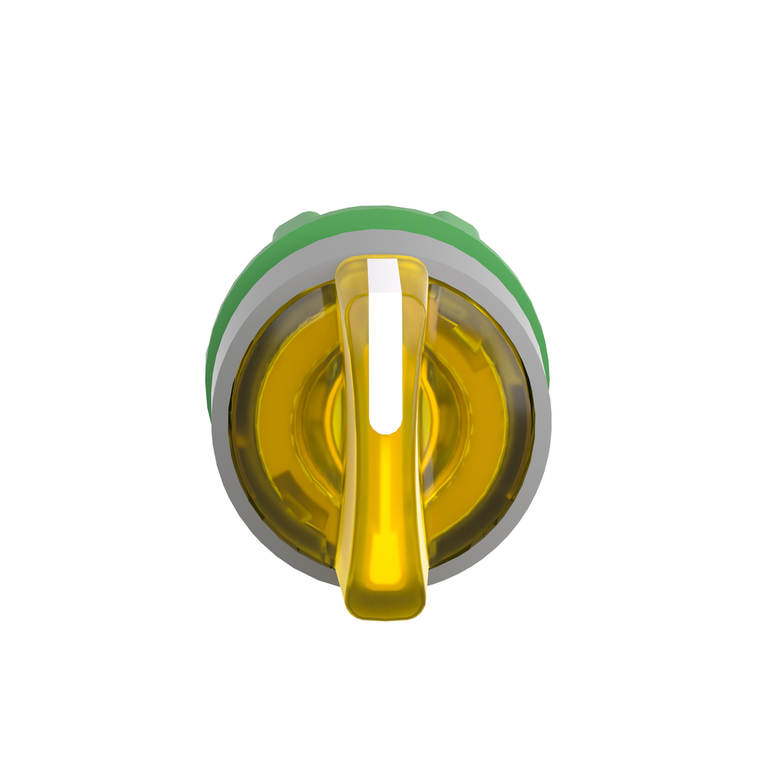

Schneider Electric ZB5AK1583C0 Xb5 Yellow Slector Switch 3 Pos.
This illuminated switch head for universal LED provides an ergonomic interface for controlling your machines. It is supplied with standard handle and can easily be installed on compatible selector switch units. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K, making it ideal for operation in harsh environments.
- Toxic Heavy Metal Free:
- Yes
- Mercury Free:
- Yes
- Net Weight:
- 0.016 kg
- Range Of Product:
- Harmony XB5
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Bezel Material:
- plastic colour plated grey
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Device Short Name:
- ZB5
- Overvoltage Category:
- class II IEC 60536
- Operator Profile:
- yellow standard handle
- Standards:
- EN/IEC 60947-5-5 || EN/IEC 60947-1 || JIS C8201-5-1 || EN/IEC 60947-5-4 || UL 508 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || JIS C8201-1
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Electrical Composition Code:
- M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED || M4 4 single and d
- Product Compatibility:
- universal LED
- Protective Treatment:
- TH
- Sale Per Indivisible Quantity:
- 1
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67
- Device Presentation:
- basic element
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Ik Degree Of Protection:
- IK04 IEC 50102
- Reach Free Of Svhc:
- Yes
- Cad Overall Width:
- 29 mm
- Ambient Air Temperature For Storage:
- -40-70 °C
- China Rohs Regulation:
- X
- Rohs Exemption Information:
- Yes
- Type Of Operator:
- to centre spring return
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Product Or Component Type:
- head for illuminated selector switch
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Ambient Air Temperature For Operation:
- -40-70 °C
- Cad Overall Depth:
- 43 mm
- Mechanical Durability:
- 500000 cycles
- Shape Of Signaling Unit Head:
- round
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Product Certifications:
- LROS (Lloyds register of shipping) || CSA || UL Listed || BV || DNV || GL
- Cad Overall Height:
- 29 mm
- Operator Position Information:
- 3 positions +/- 45°
- Mounting Diameter:
- 22 mm
