Schneider Electric ZB5AL6 Pushbutton Operator Head

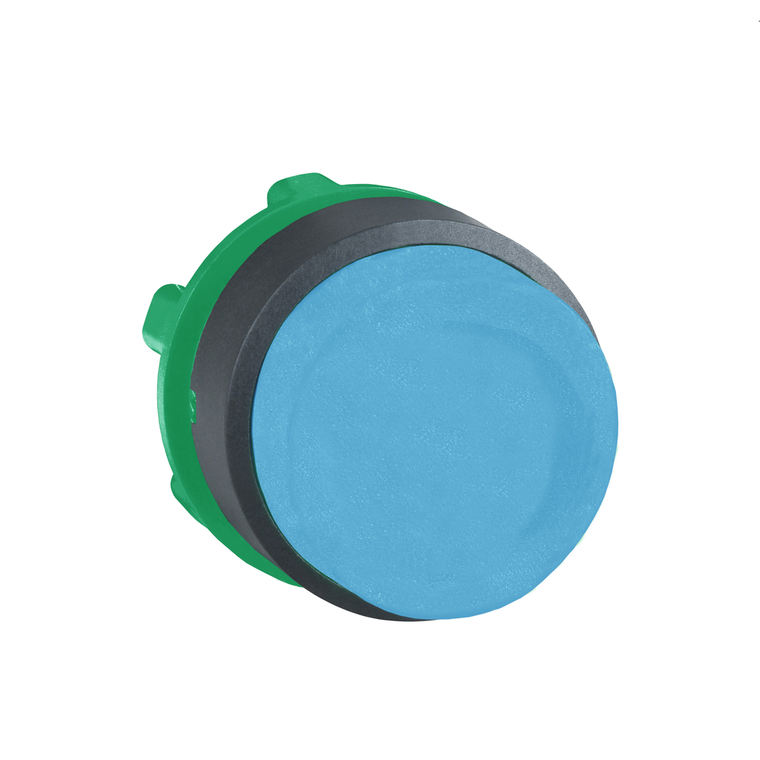

This blue projecting button head provides an ergonomic interface for controlling your machines. It is easily combined with Harmony range of push buttons and contact blocks. Thus it is possible to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
- Sale Per Indivisible Quantity:
- 1
- Cad Overall Height:
- 29 mm
- Bezel Material:
- dark grey plastic
- Range Of Product:
- Harmony XB5
- Device Short Name:
- ZB5
- Electrical Composition Code:
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
- Circularity Profile:
- ENVEOLI1710010EN
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- China Rohs Regulation:
- X
- Mercury Free:
- Yes
- Shape Of Signaling Unit Head:
- round
- Environmental Disclosure:
- ENVPEP1710010EN
- Overvoltage Category:
- class II IEC 60536
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Mounting Diameter:
- 22 mm
- Net Weight:
- 0.019 kg
- Type Of Operator:
- spring return
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ambient Air Temperature For Storage:
- -40-70 °C
- Protective Treatment:
- TH
- Operator Profile:
- blue projecting, unmarked
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Rohs Exemption Information:
- Yes
- Cad Overall Width:
- 29 mm
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Warranty:
- 18 months
- Sustainable Offer Status:
- Green Premium product
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Ik Degree Of Protection:
- IK03 IEC 50102
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Cad Overall Depth:
- 33 mm
- Product Certifications:
- UL Listed || DNV || CSA || BV || GL || LROS (Lloyds register of shipping)
- Mechanical Durability:
- 10000000 cycles
- Ambient Air Temperature For Operation:
- -40-70 °C
- Head Type:
- standard
- Product Or Component Type:
- head for non-illuminated push-button
- Device Presentation:
- basic element
