Schneider Electric ZB5APA4 Pushbutton Operator Head

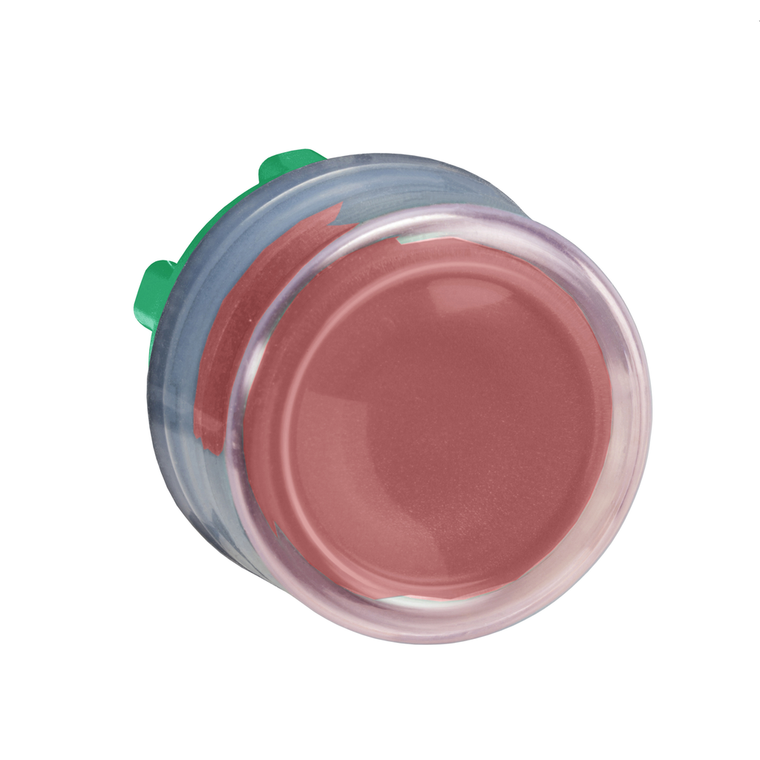

This clear silicone booted red button head provides a simple solution to comply with hygiene requirement. This makes it ideal in food, beverage industries as well as healthcare and pharmaceuticals. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
- Standards:
- IEC 60947-5-1 || JIS C8201-5-1 || UL 508 || IEC 60947-5-4 || CSA C22.2 No 14 || IEC 60947-1 || JIS C8201-1
- Environmental Disclosure:
- ENVPEP1710010EN
- Cad Overall Width:
- 30 mm
- Bezel Material:
- dark grey plastic
- China Rohs Regulation:
- X
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653
- Cad Overall Height:
- 30 mm
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Head Type:
- standard
- Mounting Diameter:
- 22 mm
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Device Presentation:
- basic element
- Mercury Free:
- Yes
- Circularity Profile:
- ENVEOLI1710010EN
- Protective Treatment:
- TH
- Shape Of Signaling Unit Head:
- round
- Product Certifications:
- GL || DNV || CSA || BV || UL Listed || LROS (Lloyds register of shipping)
- Overvoltage Category:
- class II IEC 60536
- Operator Additional Information:
- clear boot
- Warranty:
- 18 months
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Cad Overall Depth:
- 37 mm
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Operator Profile:
- red flush, unmarked
- Sustainable Offer Status:
- Green Premium product
- Type Of Operator:
- spring return
- Mechanical Durability:
- 10000000 cycles
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Product Compatibility:
- not compatible with legend holder
- Ambient Air Temperature For Storage:
- -40-70 °C
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Sale Per Indivisible Quantity:
- 1
- Ik Degree Of Protection:
- IK03 IEC 50102
- Product Or Component Type:
- head for non-illuminated push-button
- Range Of Product:
- Harmony XB5
- Rohs Exemption Information:
- Yes
- Ambient Air Temperature For Operation:
- -40-70 °C
- Device Short Name:
- ZB5
