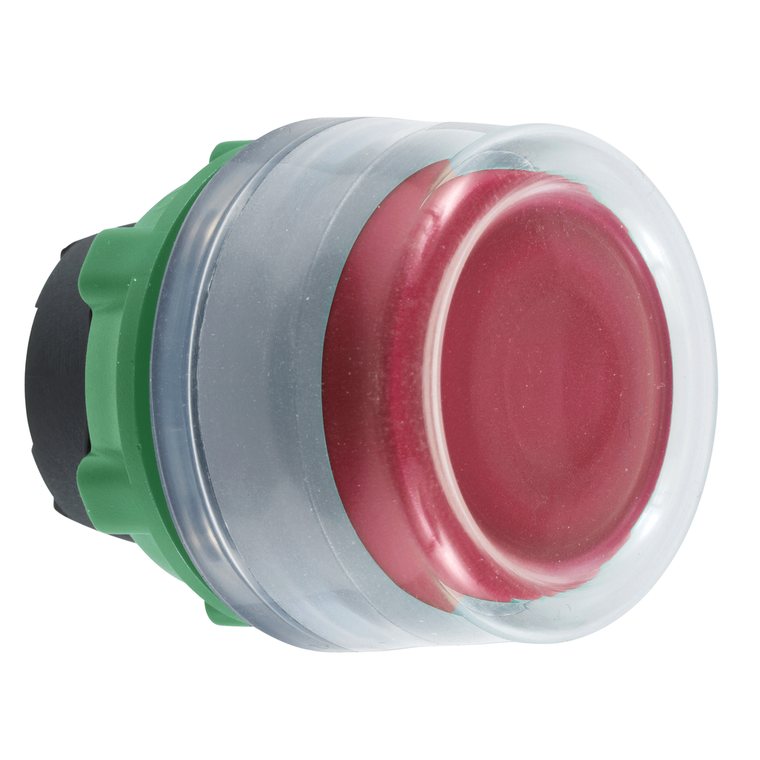

Schneider Electric ZB5APA4C0 Pushbutton Operator Head

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB5APA4C0 Pushbutton Operator Head

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5APA4C0

UPC:

3606489768522

MPN:

Condition:

New

Shape Of Signaling Unit Head:

round

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 IEC 60529

Cad Overall Width:

30 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Mercury Free:

Yes

Cad Overall Height:

30 mm

Product Certifications:

GL || DNV || CSA || BV || UL Listed || LROS (Lloyds register of shipping)

Sale Per Indivisible Quantity:

1

Standards:

EN/IEC 60947-5-1 || JIS C8201-5-1 || UL 508 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || EN/IEC 60947-1 || JIS C8201-1

China Rohs Regulation:

X

Device Short Name:

ZB5

Operator Profile:

red flush, unmarked

Product Or Component Type:

head for non-illuminated push-button

Bezel Material:

plastic colour plated grey

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Overvoltage Category:

class II IEC 60536

Range Of Product:

Harmony XB5

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Head Type:

standard

Ambient Air Temperature For Storage:

-40-70 °C

Mechanical Durability:

10000000 cycles

Rohs Exemption Information:

Yes

Type Of Operator:

spring return

Mounting Diameter:

22 mm

Protective Treatment:

TH

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Cad Overall Depth:

37 mm

Ik Degree Of Protection:

IK03 IEC 50102

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Operator Additional Information:

clear boot

Product Compatibility:

not compatible with legend holder

Ambient Air Temperature For Operation:

-40-70 °C
