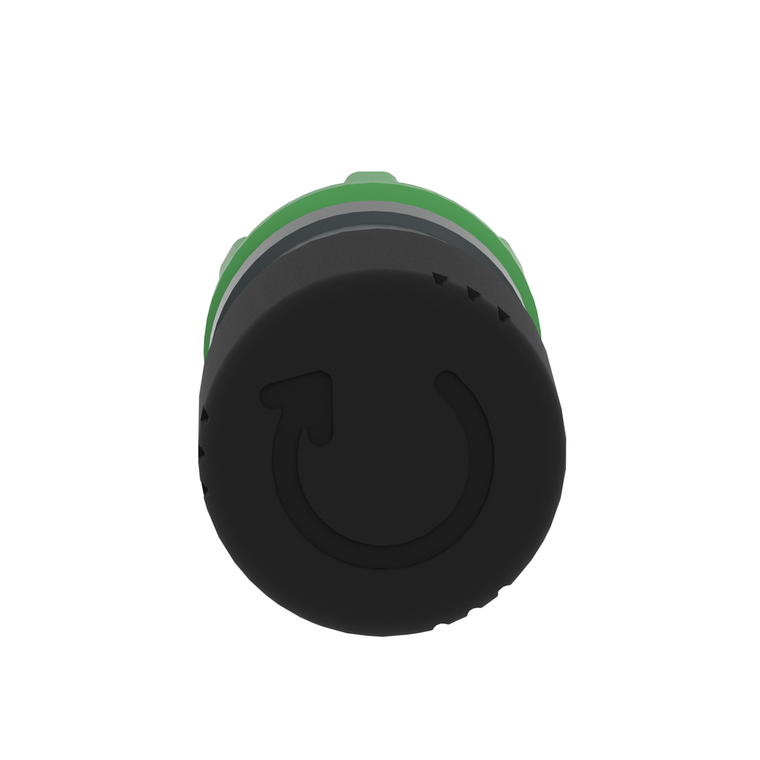

Schneider Electric ZB5AS42 Emergency Stop Op. Head

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ZB5AS42 Emergency Stop Op. Head

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5AS42

UPC:

3389110906820

MPN:

Condition:

New

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Warranty:

18 months

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Net Weight:

0.04 kg

Sustainable Offer Status:

Green Premium product

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Product Certifications:

DNV || BV || LROS (Lloyds register of shipping) || GL || CSA || UL Listed

Standards:

UL 508 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-1 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1

Reach Free Of Svhc:

Yes

Circularity Profile:

ENVEOLI1710010EN

Compatibility Code:

ZB5

Ambient Air Temperature For Storage:

-40-70 °C

Mechanical Durability:

500000 cycles

Toxic Heavy Metal Free:

Yes

Device Presentation:

basic element

Reset:

turn to release

Mercury Free:

Yes

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

Cad Overall Height:

30 mm

Operator Profile:

black mushroom Ø 30 mm, unmarked

Sale Per Indivisible Quantity:

1

Station Name:

XALD 1...5 cut-outs || XALK 2...5 cut-outs

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Overvoltage Category:

class II IEC 60536

Range Of Product:

Harmony XB5

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Device Short Name:

ZB5

Product Or Component Type:

head for non-illuminated push-button

Cad Overall Width:

30 mm

Bezel Material:

dark grey plastic

Environmental Disclosure:

ENVPEP1710010EN

Ambient Air Temperature For Operation:

-40-70 °C

Protective Treatment:

TH

China Rohs Regulation:

X

Electrical Composition Code:

C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting || C7 4 single front mounting || C8 4 single and double front mounting || C10 4 single and double front mounting

Type Of Operator:

latching

Shape Of Signaling Unit Head:

round

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Cad Overall Depth:

57 mm

Ik Degree Of Protection:

IK03 IEC 50102

Mounting Diameter:

22 mm

Head Type:

standard

Rohs Exemption Information:

Yes
