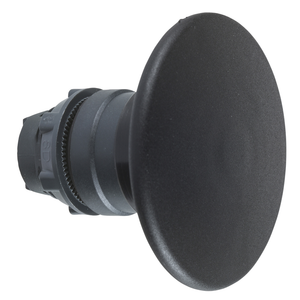

Schneider Electric ZB5AS844 Emergency Stop Op. Head
Schneider Electric
$92.50
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB5AS844 Emergency Stop Op. Head
Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
- Shape Of Signaling Unit Head:
- round
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Range Of Product:
- Harmony XB5
- Ambient Air Temperature For Operation:
- -40-70 °C
- Head Type:
- standard
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Ik Degree Of Protection:
- IK03 IEC 50102
- Device Short Name:
- ZB5
- Electrical Composition Code:
- C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting || C10 4 single and double front mounting
- Ambient Air Temperature For Storage:
- -40-70 °C
- Circularity Profile:
- ENVEOLI1710010EN
- Cad Overall Height:
- 40 mm
- Compatibility Code:
- ZB5
- China Rohs Regulation:
- X
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Operator Profile:
- red mushroom à 40 mm, unmarked
- Mercury Free:
- Yes
- Mechanical Durability:
- 300000 cycles
- Toxic Heavy Metal Free:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Device Presentation:
- basic element
- Protective Treatment:
- TH
- Mounting Diameter:
- 22 mm
- Cad Overall Depth:
- 57 mm
- Cad Overall Width:
- 40 mm
- Standards:
- UL 508 || ISO 13850 || IEC 60364-5-53 || IEC 60204-1 || GB 14048.5 || JIS C8201-5-1 || IEC 60947-5-4 || CSA C22.2 No 14 || IEC 60947-5-5 || IEC 60947-1 || IEC 60947-5-1 || JIS C8201-1
- Warranty:
- 18 months
- Reset:
- turn to release
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Net Weight:
- 0.046 kg
- Product Destination:
- emergency stop push-button
- Reach Free Of Svhc:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Overvoltage Category:
- class II IEC 60536
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Bezel Material:
- dark grey plastic
- Station Name:
- XALD 1 cut-out || XALK 1 cut-out
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Product Certifications:
- CSA || DNV || LROS (Lloyds register of shipping) || UL Listed || GL || BV
- Sale Per Indivisible Quantity:
- 1
- Environmental Disclosure:
- ENVPEP1710010EN
- Type Of Operator:
- trigger action and mechanical latching
- Product Or Component Type:
- head for emergency stop push-button
- Sustainable Offer Status:
- Green Premium product
- Rohs Exemption Information:
- Yes
- Datasheet:
- View
