Schneider Electric

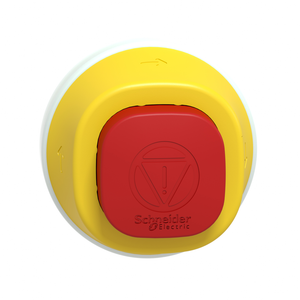

Schneider Electric ZB5AS84W2M Illuminated Emergency Stop Ttr Head

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ZB5AS84W2M Illuminated Emergency Stop Ttr Head

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5AS84W2M

UPC:

3606489744960

MPN:

Condition:

New

Reset:

turn to release

[Us] Rated Supply Voltage:

230 V

[Us] Rated Supply Voltage:

230...240 V AC 50...60 Hz

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Warranty:

18 months

Environmental Disclosure:

ENVPEP1710010EN

Sustainable Offer Status:

Green Premium product

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27

Ambient Air Temperature For Storage:

-40-70 °C

China Rohs Regulation:

X

Device Presentation:

basic element

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Electrical Insulation Class:

class II IEC 61140

Net Weight:

0.063 kg

Range Of Product:

Harmony XB5

Ambient Air Temperature For Operation:

-40-70 °C

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Mounting Diameter:

22 mm

Mercury Free:

Yes

Shape Of Signaling Unit Head:

round

Compatibility Code:

ZB5

Type Of Operator:

trigger action and mechanical latching

Device Short Name:

ZB5

Operator Profile:

red square 32 mm

Light Source Colour:

red

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Electrical Composition Code:

C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting || C10 4 single and double front mounting

Ik Degree Of Protection:

IK05 IEC 50102

Product Compatibility:

ZB5

Cad Overall Depth:

40 mm

Product Or Component Type:

head for illuminated emergency stop push-button

Mechanical Durability:

300000 cycles

Cad Overall Width:

60 mm

Supply Voltage Limits:

195-264 V AC

Head Type:

standard

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Product Certifications:

UL Listed || CSA || EAC

Bezel Material:

plastic

Sale Per Indivisible Quantity:

1

[Ui] Rated Insulation Voltage:

250 V 3)IEC 60947-1

Protective Treatment:

TH

Standards:

IEC 60947-5-1 || IEC 60947-5-4 || UL 508 || ISO 21702 || ISO 22196:2011

Resistance To Electrostatic Discharge:

4 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Cad Overall Height:

60 mm

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50E || Type 12 UL 50E || Type 4 UL 50E || Type 4X UL 50E

Circularity Profile:

ENVEOLI1710010EN

Rohs Exemption Information:

Yes

Datasheet:

View
