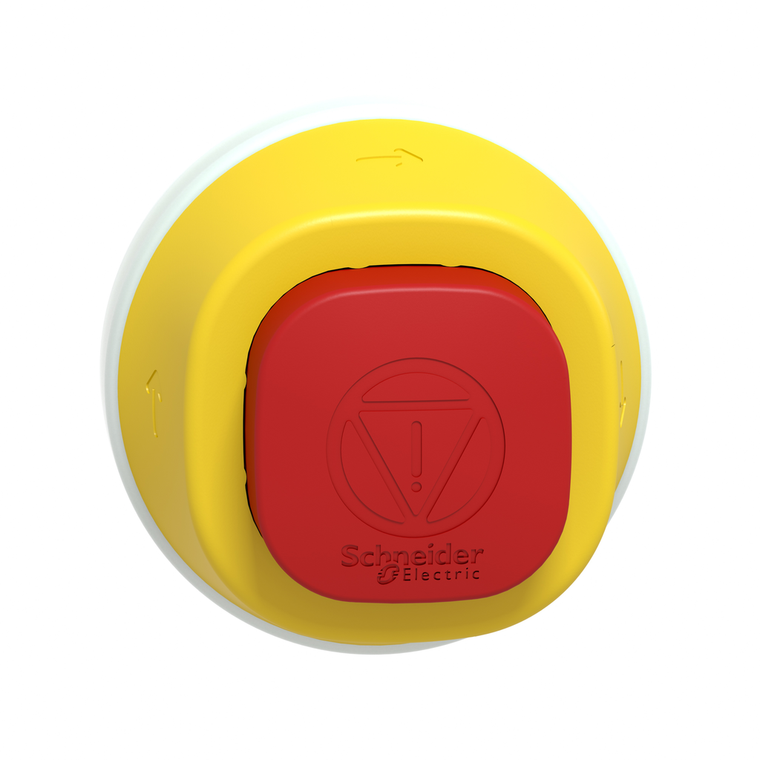

Schneider Electric ZB5AS84W3B Illuminated Emergency Stop Ttr Head

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ZB5AS84W3B Illuminated Emergency Stop Ttr Head

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5AS84W3B

UPC:

3606489744977

MPN:

Condition:

New

Resistance To Electrostatic Discharge:

4 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Ambient Air Temperature For Storage:

-40-70 °C

Protective Treatment:

TH

China Rohs Regulation:

X

Product Certifications:

UL Listed || CSA || EAC

Mechanical Durability:

300000 cycles

[Us] Rated Supply Voltage:

24 V AC/DC 50...60 Hz

Cad Overall Width:

60 mm

Electrical Composition Code:

C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting || C10 4 single and double front mounting

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Light Source Colour:

white or red

Device Presentation:

basic element

[Us] Rated Supply Voltage:

24 V

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Circularity Profile:

ENVEOLI1710010EN

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Compatibility Code:

ZB5

Net Weight:

0.063 kg

[Ui] Rated Insulation Voltage:

24 V 3)EN/IEC 60947-1

Environmental Disclosure:

ENVPEP1710010EN

Standards:

EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || ISO 21702 || ISO 22196:2011

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Head Type:

standard

Device Short Name:

ZB5

Rohs Exemption Information:

Yes

Product Or Component Type:

head for illuminated emergency stop push-button

Mounting Diameter:

22 mm

Reset:

turn to release

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50E || Type 12 UL 50E || Type 4 UL 50E || Type 4X UL 50E

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27

Operator Profile:

red square 32 mm

Product Compatibility:

ZB5

Ambient Air Temperature For Operation:

-40-70 °C

Range Of Product:

Harmony XB5

Bezel Material:

plastic

Ik Degree Of Protection:

IK05 IEC 50102

Cad Overall Height:

60 mm

Warranty:

18 months

Sustainable Offer Status:

Green Premium product

Sale Per Indivisible Quantity:

1

Cad Overall Depth:

40 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Type Of Operator:

trigger action and mechanical latching

Supply Voltage Limits:

19.2-30 V DC || 21.6-26.4 V AC

Shape Of Signaling Unit Head:

round

Mercury Free:

Yes

Electrical Insulation Class:

class II IEC 61140
