Schneider Electric ZB5AS94412 Emergency Stop Op. Head
Schneider Electric
$112.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

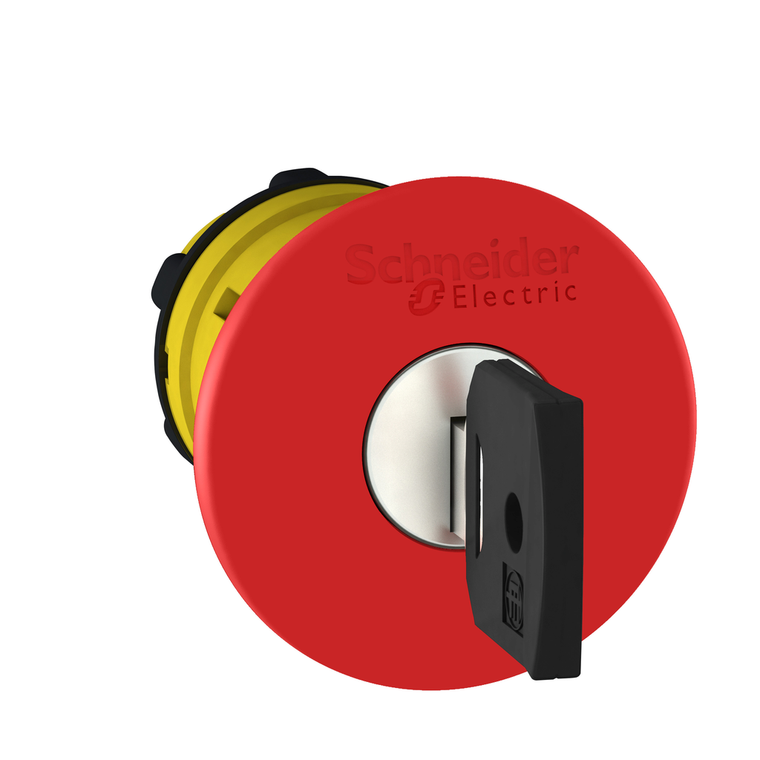

Schneider Electric ZB5AS94412 Emergency Stop Op. Head
This Harmony XB5 emergency stop / shutdown 40mm mushroom red button head operates with a latched key release (key no.421E) mechanism. It provides an ergonomic interface for controlling your machines. It is easily installed on compatible complete emergency stop and switching off push buttons. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
- Type Of Keylock:
- key 421E
- Compatibility Code:
- ZB5
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Operator Profile:
- red mushroom à 40 mm, unmarked
- Sale Per Indivisible Quantity:
- 1
- Mounting Diameter:
- 22 mm
- Cad Overall Height:
- 40 mm
- Reset:
- key release
- Product Certifications:
- LROS (Lloyds register of shipping) || UL Listed || GL || CSA || DNV || BV
- Product Destination:
- emergency stop push-button
- Environmental Disclosure:
- ENVPEP1710010EN
- Mercury Free:
- Yes
- Ik Degree Of Protection:
- IK03 IEC 50102
- Shape Of Signaling Unit Head:
- round
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Standards:
- EN/IEC 60947-5-1 || GB 14048.5 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || EN/IEC 60947-5-5 || JIS C8201-5-1 || EN/ISO 13850 || EN/IEC 60204-1 || IEC 60364-5-53 || UL 508 || EN/IEC 60947-1 || JIS C8201-1
- Device Presentation:
- basic element
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Key Withdrawal Position:
- center
- Circularity Profile:
- ENVEOLI1710010EN
- Net Weight:
- 0.071 kg
- Electrical Composition Code:
- C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting || C10 4 single and double front mounting
- Ambient Air Temperature For Storage:
- -40-70 °C
- Overvoltage Category:
- class II IEC 60536
- Bezel Material:
- dark grey plastic
- Head Type:
- standard
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information:
- Yes
- Range Of Product:
- Harmony XB5
- Warranty:
- 18 months
- Product Or Component Type:
- head for emergency stop push-button
- Sustainable Offer Status:
- Green Premium product
- Mechanical Durability:
- 300000 cycles
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Station Name:
- XALD 1 cut-out || XALK 1 cut-out
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- China Rohs Regulation:
- X
- Device Short Name:
- ZB5
- Protective Treatment:
- TH
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Cad Overall Depth:
- 79 mm
- Ambient Air Temperature For Operation:
- -40-70 °C
- Cad Overall Width:
- 40 mm
- Type Of Operator:
- trigger action and mechanical latching
- Datasheet:
- View
