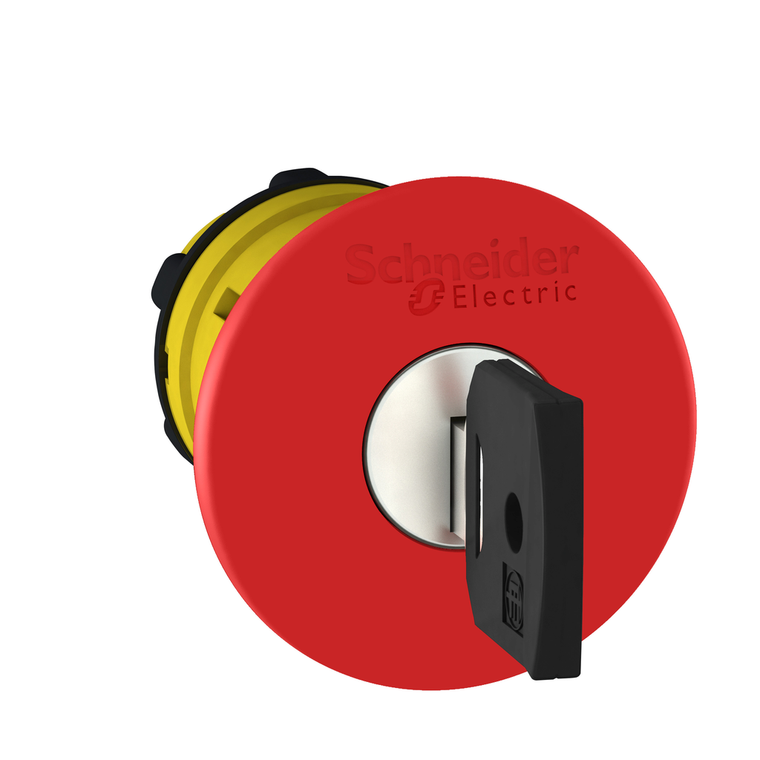

Schneider Electric ZB5AS94414 Red Emergency Stop Trigger Iso13850 Head
Schneider Electric
$123.48
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB5 emergency stop / shutdown 40mm mushroom red button head operates with a latched key release (key no.520E) mechanism. It provides an ergonomic interface for controlling your machines. It is easily installed on compatible complete emergency stop and switching off push buttons. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
- Ambient Air Temperature For Storage:
- -40-70 °C
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ambient Air Temperature For Operation:
- -40-70 °C
- Mounting Diameter:
- 22 mm
- Station Name:
- XALD 1 cut-out || XALK 1 cut-out
- Net Weight:
- 0.071 kg
- Warranty:
- 18 months
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Sale Per Indivisible Quantity:
- 1
- Circularity Profile:
- ENVEOLI1710010EN
- Operator Profile:
- red mushroom à 40 mm, unmarked
- China Rohs Regulation:
- X
- Overvoltage Category:
- class II IEC 60536
- Sustainable Offer Status:
- Green Premium product
- Type Of Keylock:
- key 520E
- Cad Overall Height:
- 40 mm
- Cad Overall Depth:
- 79 mm
- Ik Degree Of Protection:
- IK03 IEC 50102
- Product Or Component Type:
- head for emergency stop push-button
- Environmental Disclosure:
- ENVPEP1710010EN
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Product Certifications:
- CSA || BV || UL Listed || DNV || LROS (Lloyds register of shipping) || GL
- Bezel Material:
- dark grey plastic
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Electrical Composition Code:
- C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting || C10 4 single and double front mounting
- Device Presentation:
- basic element
- Protective Treatment:
- TH
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Standards:
- IEC 60364-5-53 || CSA C22.2 No 14 || UL 508 || EN/IEC 60947-5-4 || JIS C8201-5-1 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-5 || EN/ISO 13850 || EN/IEC 60204-1 || GB 14048.5 || JIS C8201-1
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Product Destination:
- emergency stop push-button
- Head Type:
- standard
- Reset:
- key release
- Rohs Exemption Information:
- Yes
- Mercury Free:
- Yes
- Key Withdrawal Position:
- center
- Device Short Name:
- ZB5
- Type Of Operator:
- trigger action and mechanical latching
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Cad Overall Width:
- 40 mm
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Shape Of Signaling Unit Head:
- round
- Range Of Product:
- Harmony XB5
- Compatibility Code:
- ZB5
- Mechanical Durability:
- 300000 cycles
- Datasheet:
- View
