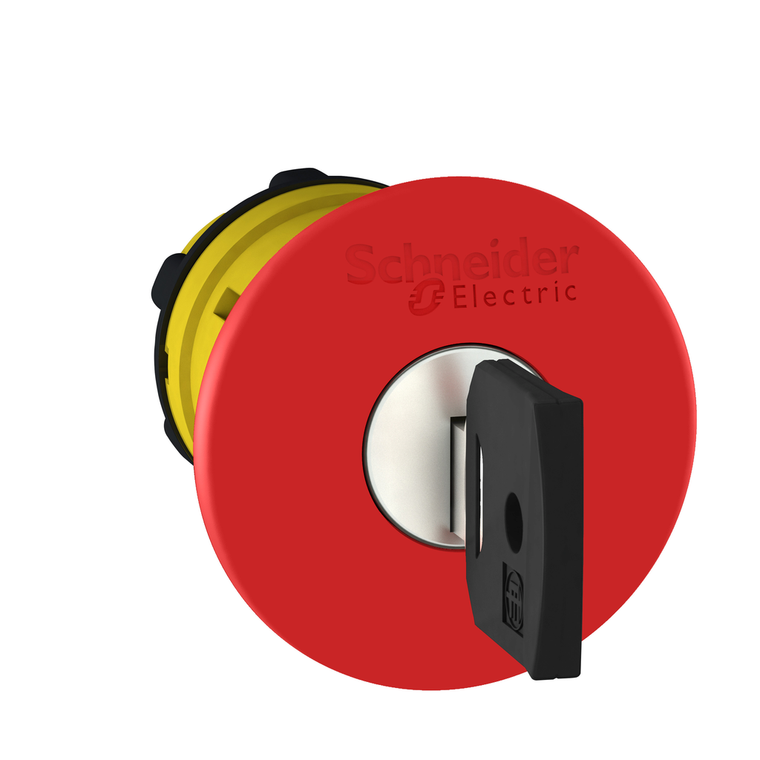

Schneider Electric ZB5AS944D Red Emergency Stop Trigger Iso13850 Head
Schneider Electric
$233.25
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB5 emergency stop / shutdown 40mm mushroom red button head operates with a latched key release (key no.4A185) mechanism. It provides an ergonomic interface for controlling your machines. It is easily installed on compatible complete emergency stop and switching off push buttons. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Circularity Profile:
- ENVEOLI1710010EN
- Environmental Disclosure:
- ENVPEP1710010EN
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Product Destination:
- emergency stop push-button
- Net Weight:
- 0.071 kg
- Ik Degree Of Protection:
- IK03 IEC 50102
- Type Of Keylock:
- Dom 4A185
- Cad Overall Depth:
- 79 mm
- Sale Per Indivisible Quantity:
- 1
- Reset:
- key release
- Compatibility Code:
- ZB5
- Mercury Free:
- Yes
- Mechanical Durability:
- 300000 cycles
- Station Name:
- XALD 1 cut-out || XALK 1 cut-out
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Cad Overall Height:
- 40 mm
- Sustainable Offer Status:
- Green Premium product
- Protective Treatment:
- TH
- Operator Profile:
- red mushroom à 40 mm, unmarked
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ambient Air Temperature For Operation:
- -40-70 °C
- Rohs Exemption Information:
- Yes
- Product Or Component Type:
- head for emergency stop push-button
- Standards:
- CSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || EN/IEC 60947-5-5 || EN/IEC 60204-1 || GB 14048.5 || EN/IEC 60947-5-1 || UL 508 || JIS C8201-5-1 || IEC 60364-5-53 || EN/ISO 13850 || JIS C8201-1
- Shape Of Signaling Unit Head:
- round
- Range Of Product:
- Harmony XB5
- China Rohs Regulation:
- X
- Type Of Operator:
- trigger action and mechanical latching
- Warranty:
- 18 months
- Head Type:
- standard
- Product Certifications:
- UL Listed || CSA || BV || GL || DNV || LROS (Lloyds register of shipping)
- Device Short Name:
- ZB5
- Overvoltage Category:
- class II IEC 60536
- Cad Overall Width:
- 40 mm
- Ambient Air Temperature For Storage:
- -40-70 °C
- Electrical Composition Code:
- C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting || C10 4 single and double front mounting
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Mounting Diameter:
- 22 mm
- Device Presentation:
- basic element
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Key Withdrawal Position:
- center
- Bezel Material:
- dark grey plastic
