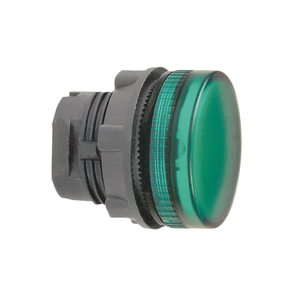

Schneider Electric ZB5AV03 Pilot Light Head

(No reviews yet) Write a Review
SKU:
ZB5AV03
UPC:
3389110908077
Condition:
New
Electrical Composition Code:
P3 front mounting BA 9s || P4 front mounting BA 9s and transformer || PF2 front mounting BA 9s
Standards:
IEC 60947-5-4 || JIS C8201-5-1 || IEC 60947-1 || CSA C22.2 No 14 || IEC 60947-5-1 || IEC 60947-5-5 || UL 508 || JIS C8201-1
Overvoltage Category:
class II IEC 60536
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653
Cad Overall Depth:
31 mm
Head Type:
standard
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Circularity Profile:
ENVEOLI1710010EN
Product Or Component Type:
head for pilot light
Range Of Product:
Harmony XB5
Cap/Operator Or Lens Colour:
green
Protective Treatment:
TH
Ambient Air Temperature For Operation:
-40-70 °C
Operator Additional Information:
with plain lens
Sale Per Indivisible Quantity:
1
Sustainable Offer Status:
Green Premium product
Reach Free Of Svhc:
Yes
Shape Of Signaling Unit Head:
round
Mercury Free:
Yes
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Toxic Heavy Metal Free:
Yes
Cad Overall Width:
29 mm
Rohs Exemption Information:
Yes
Net Weight:
0.018 kg
Environmental Disclosure:
ENVPEP1710010EN
Cad Overall Height:
29 mm
Station Name:
XALD 1...5 cut-outs || XALK 2...5 cut-outs
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Device Short Name:
ZB5
Product Compatibility:
BA 9s
Mounting Diameter:
22 mm
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Device Presentation:
basic element
China Rohs Regulation:
X
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Bezel Material:
dark grey plastic
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Ik Degree Of Protection:
IK05 IEC 50102
Warranty:
18 months
Ambient Air Temperature For Storage:
-40-70 °C
  • Schneider Electric ZB5AV03 Pilot Light Head
  • Schneider Electric ZB5AV03 Pilot Light Head
  • Schneider Electric ZB5AV03 Pilot Light Head
$7.60

Description

This Harmony XB5 plain lens green head for pilot light is supplied with BA9s base. It offers a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of lens. It enables complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
