Schneider Electric ZB5AVG1 120 V Led Pilot Light Bod
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

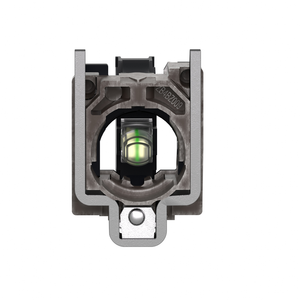

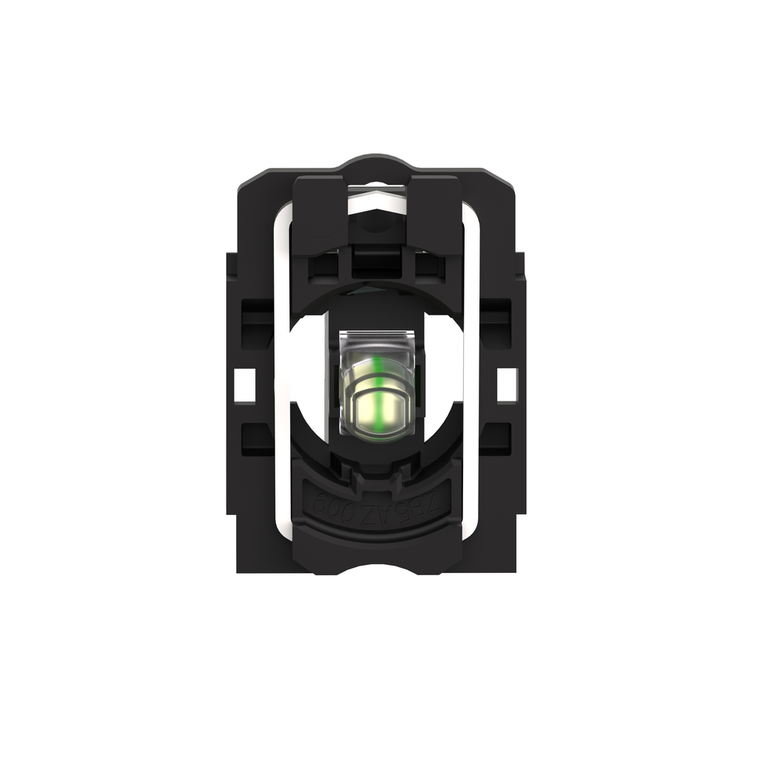

This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units . It is assembled via clips and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.
- Warranty:
- 18 months
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Connections - Terminals:
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
- Bulb Base:
- integral LED
- Sale Per Indivisible Quantity:
- 1
- Environmental Disclosure:
- ENVPEP1710010EN
- Resistance To Electromagnetic Fields:
- 10 V/m IEC 61000-4-3
- Cad Overall Height:
- 42 mm
- Device Presentation:
- basic sub-assemblies
- Electromagnetic Emission:
- class B IEC 55011
- Ambient Air Temperature For Storage:
- -40-70 °C
- Tightening Torque:
- 0.8-1.2 N.m IEC 60947-1
- Net Weight:
- 0.022 kg
- Protective Treatment:
- TH
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Range Of Product:
- Harmony XB5
- Cad Overall Depth:
- 32 mm
- Surge Withstand:
- 1 kV IEC 61000-4-5
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- [Ui] Rated Insulation Voltage:
- 600 V 3)IEC 60947-1
- Device Short Name:
- ZB5
- [Us] Rated Supply Voltage:
- 110...120 V AC 50/60 Hz
- Cad Overall Width:
- 30 mm
- Terminals Description Iso N°1:
- (X1-X2)PL
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947-1
- Resistance To Electrostatic Discharge:
- 6 kV on contact (on metal parts) IEC 61000-2-6 || 8 kV in free air (in insulating parts) IEC 61000-2-6
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Standards:
- IEC 60947-5-1 || IEC 60947-5-4 || CSA C22.2 No 14 || IEC 60947-1 || JIS C8201-5-1 || UL 508 || JIS C8201-1
- Service Life:
- 100000 h at rated voltage and 25 °C
- Rohs Exemption Information:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Ambient Air Temperature For Operation:
- -40-70 °C
- China Rohs Regulation:
- X
- Signalling Type:
- steady
- Electrical Shock Protection Class:
- class II IEC 60536
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Light Source Colour:
- white
- Current Consumption:
- 14 mA
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Circularity Profile:
- ENVEOLI1710010EN
- Product Certifications:
- BV || LROS (Lloyds register of shipping) || CSA || DNV || UL Listed || GL
- Light Source:
- universal LED
- Mercury Free:
- Yes
- Product Or Component Type:
- complete body/light block assembly
- Shape Of Screw Head:
- cross Philips no 1 || cross pozidriv No 1 || slotted flat à 4 mm || slotted flat à 5.5 mm
- Resistance To Fast Transients:
- 2 kV IEC 61000-4-4
- Fixing Collar Material:
- plastic
