Schneider Electric ZB5AVJ1 12 V Led Pilot Light Body
Schneider Electric
$85.50
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

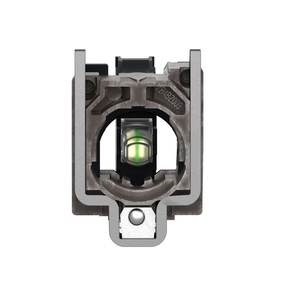

This Harmony XB5, light block with body/fixing collar operates with a universal LED. It has a plastic body and is compatible with Harmony XB5 pilot lights. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by universal LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.
- Light Source Colour:
- white
- Resistance To Fast Transients:
- 2 kV IEC 61000-4-4
- Mercury Free:
- Yes
- Bulb Base:
- integral LED
- Warranty:
- 18 months
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- [Ui] Rated Insulation Voltage:
- 600 V 3)IEC 60947-1
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Light Source:
- universal LED
- Standards:
- IEC 60947-1 || JIS C8201-5-1 || IEC 60947-5-4 || UL 508 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
- Resistance To Electrostatic Discharge:
- 6 kV on contact (on metal parts) IEC 61000-2-6 || 8 kV in free air (in insulating parts) IEC 61000-2-6
- Rohs Exemption Information:
- Yes
- Device Presentation:
- basic sub-assemblies
- Electrical Shock Protection Class:
- class II IEC 60536
- Tightening Torque:
- 0.8-1.2 N.m IEC 60947-1
- Product Certifications:
- GL || BV || CSA || UL Listed || LROS (Lloyds register of shipping) || DNV
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947-1
- Connections - Terminals:
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
- Terminals Description Iso N°1:
- (X1-X2)PL
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Environmental Disclosure:
- ENVPEP1710010EN
- [Us] Rated Supply Voltage:
- 12 V AC/DC 50/60 Hz
- Sale Per Indivisible Quantity:
- 1
- Device Short Name:
- ZB5
- Signalling Type:
- steady
- Surge Withstand:
- 1 kV IEC 61000-4-5
- Ambient Air Temperature For Storage:
- -40-70 °C
- Supply Voltage Limits:
- 10-15 V DC || 10.2-13.8 V AC
- Protective Treatment:
- TH
- Shape Of Screw Head:
- cross Philips no 1 || cross pozidriv No 1 || slotted flat à 4 mm || slotted flat à 5.5 mm
- Fixing Collar Material:
- plastic
- Cad Overall Height:
- 42 mm
- Circularity Profile:
- ENVEOLI1710010EN
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Current Consumption:
- 18 mA
- Sustainable Offer Status:
- Green Premium product
- Service Life:
- 100000 h at rated voltage and 25 °C
- Range Of Product:
- Harmony XB5
- Net Weight:
- 0.022 kg
- Ambient Air Temperature For Operation:
- -40-70 °C
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Electromagnetic Emission:
- class B IEC 55011
- Resistance To Electromagnetic Fields:
- 10 V/m IEC 61000-4-3
- Cad Overall Depth:
- 32 mm
- China Rohs Regulation:
- X
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Product Or Component Type:
- complete body/light block assembly
- Cad Overall Width:
- 30 mm
- Catalog:
- View
- Datasheet:
- View
