Schneider Electric ZB5AW035 Ill. Transformer P. B. Bo
Schneider Electric
$130.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB5AW035 Ill. Transformer P. B. Bo

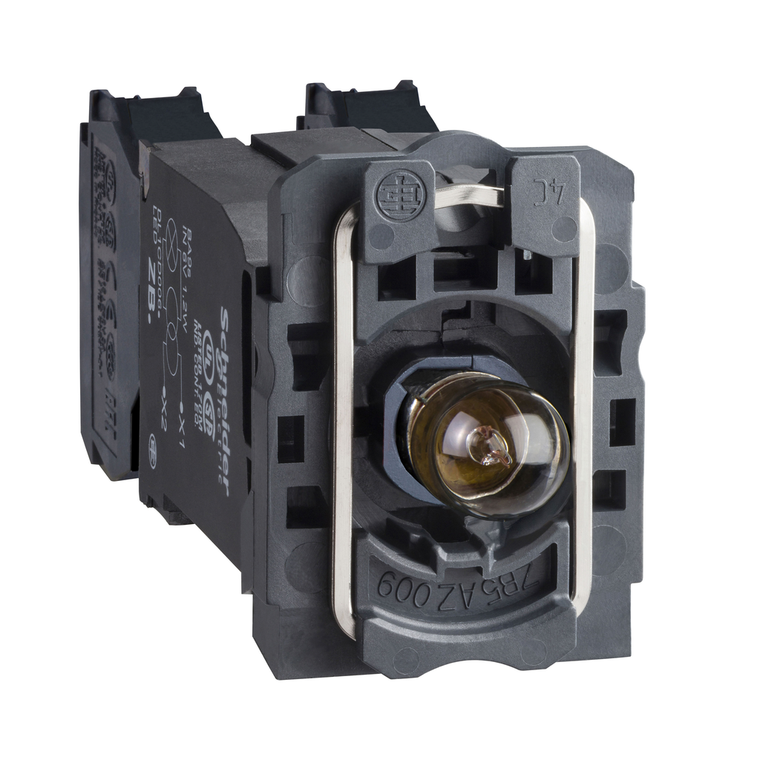

This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units . It is assembled via clips and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by BA9s base Integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.
- Contacts Type And Composition:
- 1 NO + 1 NC
- Electrical Shock Protection Class:
- class II IEC 60536
- Device Presentation:
- basic sub-assemblies
- Terminals Description Iso N°1:
- (11-12)NC || (13-14)NO
- Range Of Product:
- Harmony XB5
- Bulb Base:
- BA 9s
- [Ie] Rated Operational Current:
- 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- Contacts Material:
- silver alloy (Ag/Ni)
- Circularity Profile:
- ENVEOLI1710010EN
- Light Source:
- incandescent
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Operating Travel:
- 1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
- Standards:
- UL 508 || IEC 60947-5-1 || JIS C8201-5-1 || IEC 60947-1 || CSA C22.2 No 14 || IEC 60947-5-4 || JIS C8201-1
- Operating Torque:
- 0.05 N.m NO changing electrical state
- Contact Operation:
- slow-break
- Head Type:
- standard
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- [Us] Rated Supply Voltage:
- 110...120 V AC 50/60 Hz
- Light Block Supply:
- via integral transformer 1.2 VA 6 V
- Sustainable Offer Status:
- Green Premium product
- Positive Opening:
- with IEC 60947-5-1 appendix K
- Electrical Durability:
- 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,
- Shape Of Screw Head:
- cross Philips no 1 || cross pozidriv No 1 || slotted flat à 4 mm || slotted flat à 5.5 mm
- Product Or Component Type:
- complete body/contact assembly and light block
- Rohs Exemption Information:
- Yes
- Warranty:
- 18 months
- Protective Treatment:
- TH
- Cad Overall Width:
- 30 mm
- Cad Overall Height:
- 42 mm
- Signalling Type:
- steady
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947-1
- Connections - Terminals:
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
- Cad Overall Depth:
- 79 mm
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Sale Per Indivisible Quantity:
- 1
- Environmental Disclosure:
- ENVPEP1710010EN
- Electrical Reliability:
- λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
- Ambient Air Temperature For Storage:
- -40-70 °C
- Device Short Name:
- ZB5
- Mercury Free:
- Yes
- Product Certifications:
- CSA || UL Listed || GL || LROS (Lloyds register of shipping) || BV || DNV
- Mechanical Durability:
- 5000000 cycles
- Tightening Torque:
- 0.8-1.2 N.m IEC 60947-1
- China Rohs Regulation:
- X
- [Ith] Conventional Free Air Thermal Current:
- 10 A IEC 60947-5-1
- Operating Force:
- 2 N NC changing electrical state || 2.3 N NO changing electrical state
- Fixing Collar Material:
- plastic
- Contacts Usage:
- standard
- Short-Circuit Protection:
- 10 A cartridge fuse gG IEC 60947-5-1
- Net Weight:
- 0.119 kg
- Ambient Air Temperature For Operation:
- -40-70 °C
- [Ui] Rated Insulation Voltage:
- 600 V 3)IEC 60947-1
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
