Schneider Electric ZB5AW0M15 230 V Led Illumi. P.B Bod
Schneider Electric
$109.50
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

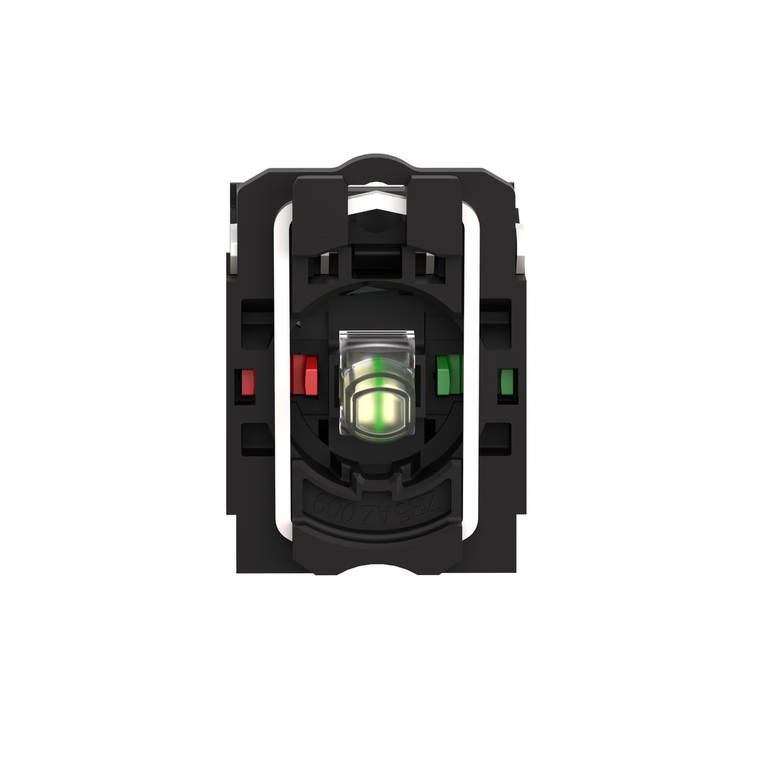

This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units . It is assembled via clips and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by universal LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.
- Resistance To Electromagnetic Fields:
- 10 V/m IEC 61000-4-3
- Resistance To Fast Transients:
- 2 kV IEC 61000-4-4
- Supply Voltage Limits:
- 195-264 V AC
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Operation:
- -40-70 °C
- Head Type:
- standard
- Range Of Product:
- Harmony XB5
- [Us] Rated Supply Voltage:
- 230...240 V AC 50/60 Hz
- Contacts Usage:
- standard
- Electrical Shock Protection Class:
- class II IEC 60536
- Shape Of Screw Head:
- cross Philips no 1 || cross pozidriv No 1 || slotted flat à 4 mm || slotted flat à 5.5 mm
- Fixing Collar Material:
- plastic
- Resistance To Electrostatic Discharge:
- 6 kV on contact (on metal parts) IEC 61000-2-6 || 8 kV in free air (in insulating parts) IEC 61000-2-6
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Surge Withstand:
- 1 kV IEC 61000-4-5
- [Ie] Rated Operational Current:
- 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- Current Consumption:
- 14 mA
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Sale Per Indivisible Quantity:
- 1
- Product Certifications:
- UL Listed || GL || DNV || BV || LROS (Lloyds register of shipping) || CSA
- Cad Overall Width:
- 30 mm
- Electromagnetic Emission:
- class B IEC 55011
- Protective Treatment:
- TH
- Positive Opening:
- with IEC 60947-5-1 appendix K
- [Ui] Rated Insulation Voltage:
- 600 V 3)IEC 60947-1
- Environmental Disclosure:
- ENVPEP1710010EN
- Operating Force:
- 2 N NC changing electrical state || 2.3 N NO changing electrical state
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Warranty:
- 18 months
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- China Rohs Regulation:
- X
- Light Source:
- universal LED
- Product Or Component Type:
- complete body/contact assembly and light block
- Mechanical Durability:
- 5000000 cycles
- Operating Torque:
- 0.05 N.m NO changing electrical state
- Rohs Exemption Information:
- Yes
- Device Short Name:
- ZB5
- Light Block Supply:
- direct
- Light Source Colour:
- white
- Signalling Type:
- steady
- Cad Overall Height:
- 42 mm
- Ambient Air Temperature For Storage:
- -40-70 °C
- Short-Circuit Protection:
- 10 A cartridge fuse gG IEC 60947-5-1
- Terminals Description Iso N°1:
- (11-12)NC || (13-14)NO
- Circularity Profile:
- ENVEOLI1710010EN
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947-1
- Sustainable Offer Status:
- Green Premium product
- Cad Overall Depth:
- 32 mm
- Mercury Free:
- Yes
- Connections - Terminals:
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
- Contacts Material:
- silver alloy (Ag/Ni)
- Standards:
- CSA C22.2 No 14 || IEC 60947-5-4 || IEC 60947-5-1 || JIS C8201-5-1 || UL 508 || IEC 60947-1 || JIS C8201-1
- Tightening Torque:
- 0.8-1.2 N.m IEC 60947-1
- Net Weight:
- 0.042 kg
- Bulb Base:
- integral LED
- Contacts Type And Composition:
- 1 NO + 1 NC
- [Ith] Conventional Free Air Thermal Current:
- 10 A IEC 60947-5-1
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Electrical Durability:
- 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,
- Electrical Reliability:
- λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
- Service Life:
- 100000 h at rated voltage and 25 °C
- Device Presentation:
- basic sub-assemblies
- Contact Operation:
- slow-break
- Operating Travel:
- 1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
