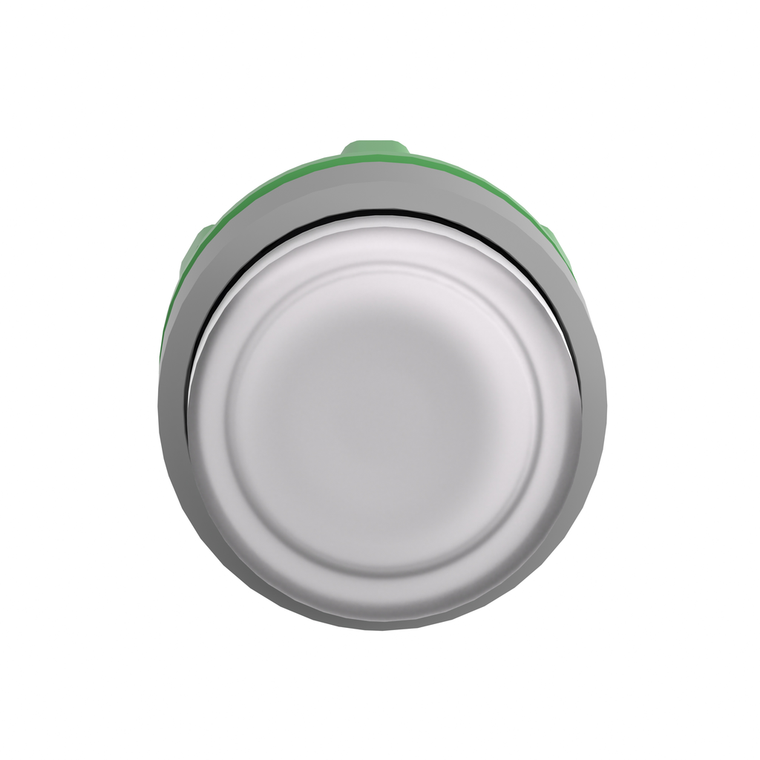

Schneider Electric ZB5AW113C0 White Proj Illum Pb Head For Integra
This illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed/replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color and by touch due to projecting element, minimizing errors in machine control. It is imapct, dust, water and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
- Group Of Product:
- proj push integral LED
- Ik Degree Of Protection:
- IK05 EN 50102
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Range Of Product:
- Harmony XB5
- Operator Profile:
- white projecting, unmarked
- Mercury Free:
- Yes
- Main Group:
- illum push-button
- Bezel Material:
- plastic colour plated grey
- Ambient Air Temperature For Operation:
- -40-70 °C
- Reach Free Of Svhc:
- Yes
- Standards:
- JIS C8201-5-1 || GB 14048.5 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || UL 508 || EN/IEC 60947-5-4 || JIS C8201-1
- Cad Overall Width:
- 29 mm
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Overvoltage Category:
- class II IEC 60536
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Device Presentation:
- basic sub-assemblies
- Product Certifications:
- DNV || CSA || UL Listed || GL || BV || LROS (Lloyds register of shipping)
- Shape Of Signaling Unit Head:
- round
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Cap/Operator Or Lens Colour:
- white
- Ambient Air Temperature For Storage:
- -40-70 °C
- Cad Overall Height:
- 29 mm
- Sale Per Indivisible Quantity:
- 1
- Electrical Composition Code:
- M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2
- Product Or Component Type:
- head for illuminated push-button
- Marking:
- unmarked
- Mounting Diameter:
- 22 mm
- Cad Overall Depth:
- 33 mm
- Device Short Name:
- ZB5
- Ip Degree Of Protection:
- IP66 IEC 60529
- Operator Additional Information:
- with plain lens
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Product Compatibility:
- universal LED
- Toxic Heavy Metal Free:
- Yes
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- China Rohs Regulation:
- X
- Type Of Operator:
- spring return
- Protective Treatment:
- TC
- Net Weight:
- 0.018 kg
- Mechanical Durability:
- 10000000 cycles
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Head Type:
- standard
- Rohs Exemption Information:
- Yes
