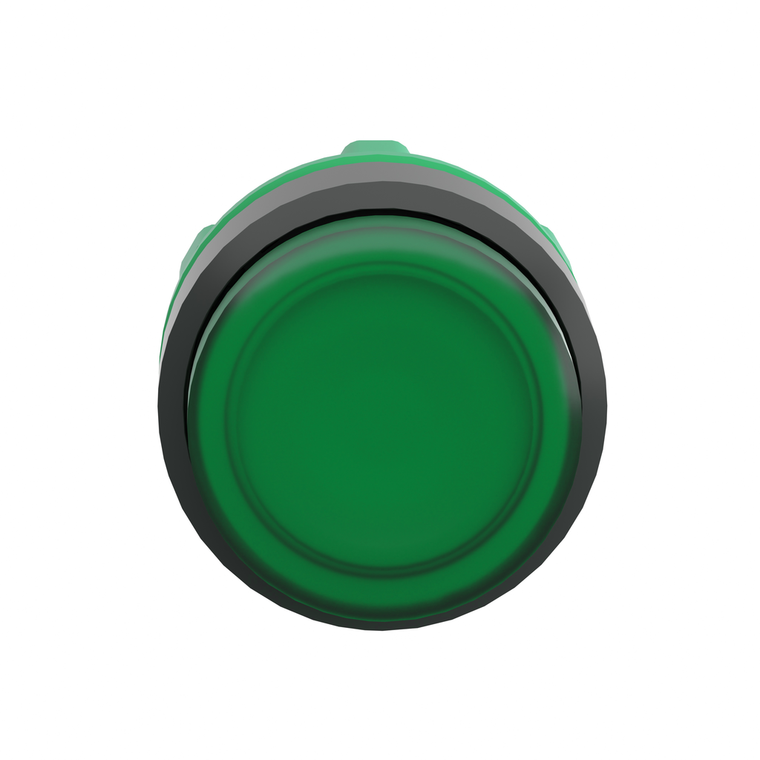

Schneider Electric ZB5AW133 Illuminated Pushbutton He
Schneider Electric
$9.56
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This green projecting illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color. It is also distinguishable by touch due to projecting element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
- Warranty:
- 18 months
- Electrical Composition Code:
- M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2
- Bezel Material:
- dark grey plastic
- Protective Treatment:
- TC
- China Rohs Regulation:
- X
- Ambient Air Temperature For Storage:
- -40-70 °C
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Mounting Diameter:
- 22 mm
- Shape Of Signaling Unit Head:
- round
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Main Group:
- illum push-button
- Cad Overall Depth:
- 33 mm
- Marking:
- unmarked
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Product Or Component Type:
- head for illuminated push-button
- Overvoltage Category:
- class II IEC 60536
- Range Of Product:
- Harmony XB5
- Net Weight:
- 0.018 kg
- Ambient Air Temperature For Operation:
- -40-70 °C
- Ik Degree Of Protection:
- IK05 EN 50102
- Mercury Free:
- Yes
- Cad Overall Height:
- 29 mm
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Environmental Disclosure:
- ENVPEP1710010EN
- Device Presentation:
- basic sub-assemblies
- Circularity Profile:
- ENVEOLI1710010EN
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP69 || IP69K
- Product Compatibility:
- universal LED
- Operator Profile:
- green projecting, unmarked
- Mechanical Durability:
- 10000000 cycles
- Product Certifications:
- DNV || GL || BV || CSA || UL Listed || LROS (Lloyds register of shipping)
- Rohs Exemption Information:
- Yes
- Cap/Operator Or Lens Colour:
- green
- Sale Per Indivisible Quantity:
- 1
- Head Type:
- standard
- Group Of Product:
- proj push integral LED
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Sustainable Offer Status:
- Green Premium product
- Type Of Operator:
- spring return
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Standards:
- CSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || GB 14048.5 || JIS C8201-5-1 || EN/IEC 60947-5-1 || UL 508 || JIS C8201-1
- Operator Additional Information:
- with plain lens
- Device Short Name:
- ZB5
- Cad Overall Width:
- 29 mm
