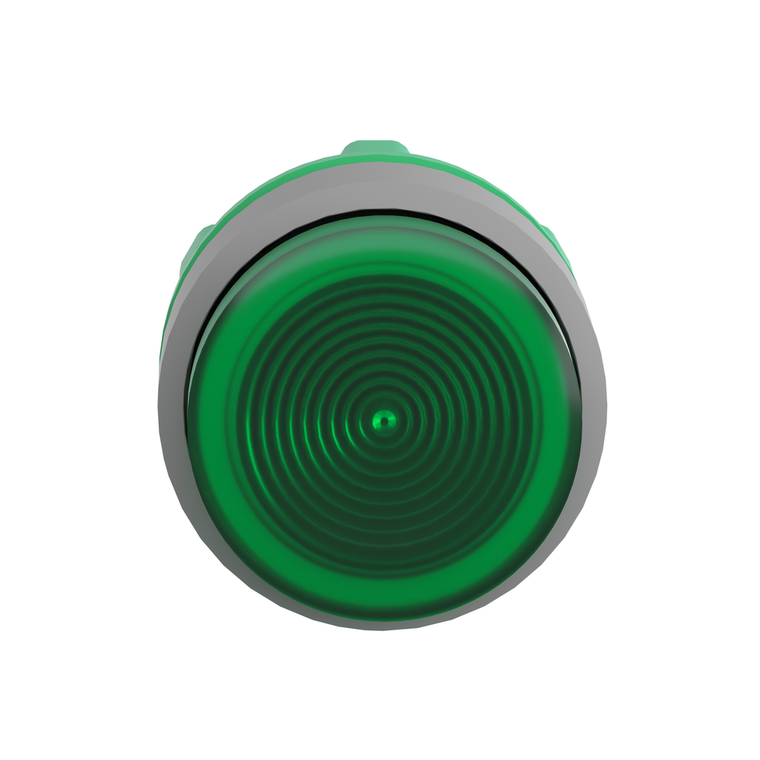

Schneider Electric ZB5AW133SC0 Green Proj Illum Pb Head For Integra

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB5AW133SC0 Green Proj Illum Pb Head For Integra

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5AW133SC0

UPC:

3606489769604

MPN:

Condition:

New

Ambient Air Temperature For Operation:

-40-70 °C

Sale Per Indivisible Quantity:

1

Product Or Component Type:

head for illuminated push-button

Main Group:

illum push-button

Ambient Air Temperature For Storage:

-40-70 °C

Cad Overall Width:

29 mm

Product Certifications:

DNV || LROS (Lloyds register of shipping) || GL || CSA || UL Listed || BV

Cad Overall Height:

29 mm

Operator Profile:

green projecting, unmarked

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Device Presentation:

basic sub-assemblies

Mechanical Durability:

10000000 cycles

Mercury Free:

Yes

China Rohs Regulation:

X

Ik Degree Of Protection:

IK05 IEC 62262

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Device Short Name:

ZB5

Rohs Exemption Information:

Yes

Cap/Operator Or Lens Colour:

green

Net Weight:

0.017 kg

Overvoltage Category:

class II IEC 60536

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Type Of Operator:

spring return

Toxic Heavy Metal Free:

Yes

Mounting Diameter:

22 mm

Reach Free Of Svhc:

Yes

Bezel Material:

plastic colour plated grey

Range Of Product:

Harmony XB5

Standards:

IEC 60947-1 || IEC 60947-5-4 || UL 508 || GB 14048.5 || CSA C22.2 No 14 || IEC 60947-5-1 || JIS C8201-5-1 || JIS C8201-1

Electrical Composition Code:

M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Product Compatibility:

universal LED

Protective Treatment:

TC

Shape Of Signaling Unit Head:

round

Marking:

unmarked

Operator Additional Information:

with grooved lens

Cad Overall Depth:

33 mm

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Ip Degree Of Protection:

IP66 IEC 60529

Environmental Characteristic:

high ambient lighting environment

Group Of Product:

proj push with inser of legend

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Station Name:

XALD 1...5 cut-outs || XALK 2...5 cut-outs

Datasheet:

View
