Schneider Electric ZB5AW14 Illuminated Pushbutton He
Schneider Electric
$13.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB5AW14 Illuminated Pushbutton He

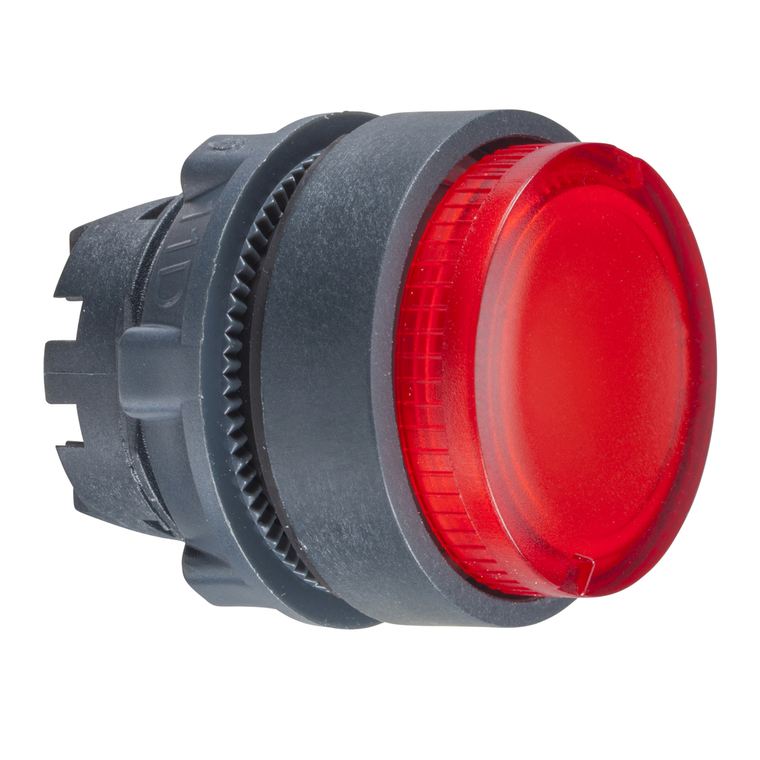

This red projecting illuminated button head provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color. It is also distinguishable by touch due to projecting element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
- Cad Overall Depth:
- 32 mm
- Standards:
- UL 508 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || JIS C8201-5-1 || CSA C22.2 No 14 || GB 14048.5 || EN/IEC 60947-1 || JIS C8201-1
- Group Of Product:
- projected push BA9s
- Sale Per Indivisible Quantity:
- 1
- Circularity Profile:
- ENVEOLI1710010EN
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Range Of Product:
- Harmony XB5
- Electrical Composition Code:
- M7 6 single front mounting BA 9s || M8 6 single and double front mounting BA 9s || M9 2 single front mounting BA 9s and transformer || MF2 2 single front mounting BA 9s
- Head Type:
- standard
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Sustainable Offer Status:
- Green Premium product
- Warranty:
- 18 months
- Rohs Exemption Information:
- Yes
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Product Certifications:
- BV || UL Listed || LROS (Lloyds register of shipping) || GL || CSA || DNV
- Operator Additional Information:
- with plain lens
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Product Compatibility:
- BA 9s
- Operator Profile:
- red projecting, unmarked
- Mechanical Durability:
- 10000000 cycles
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP69 || IP69K
- Bezel Material:
- dark grey plastic
- China Rohs Regulation:
- X
- Mounting Diameter:
- 22 mm
- Ambient Air Temperature For Operation:
- -40-55 °C
- Ik Degree Of Protection:
- IK05 EN 50102
- Environmental Disclosure:
- ENVPEP1710010EN
- Shape Of Signaling Unit Head:
- round
- Product Or Component Type:
- head for illuminated push-button
- Net Weight:
- 0.017 kg
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Ambient Air Temperature For Storage:
- -40-70 °C
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Device Short Name:
- ZB5
- Device Presentation:
- basic sub-assemblies
- Type Of Operator:
- spring return
- Marking:
- unmarked
- Main Group:
- illum push-button
- Mercury Free:
- Yes
- Cad Overall Width:
- 29 mm
- Cad Overall Height:
- 29 mm
- Overvoltage Category:
- class II IEC 60536
- Cap/Operator Or Lens Colour:
- red
- Protective Treatment:
- TC
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
