Schneider Electric ZB5AW153 Illuminated Pushbutton He
Schneider Electric
$13.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

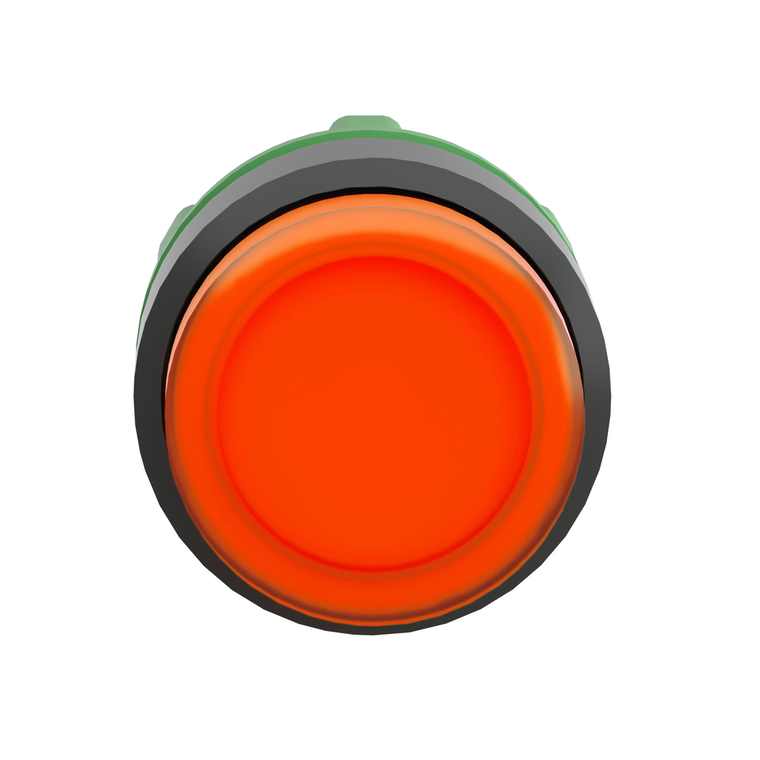

Schneider Electric ZB5AW153 Illuminated Pushbutton He
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This orange projecting illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color. It is also distinguishable by touch due to projecting element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
- Overvoltage Category:
- class II IEC 60536
- Cad Overall Width:
- 29 mm
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Product Certifications:
- UL Listed || BV || GL || LROS (Lloyds register of shipping) || CSA || DNV
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP69 || IP69K
- Main Group:
- illum push-button
- Shape Of Signaling Unit Head:
- round
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Ambient Air Temperature For Storage:
- -40-70 °C
- Marking:
- unmarked
- Range Of Product:
- Harmony XB5
- Product Compatibility:
- universal LED
- Rohs Exemption Information:
- Yes
- Environmental Disclosure:
- ENVPEP1710010EN
- Device Short Name:
- ZB5
- Mounting Diameter:
- 22 mm
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Cad Overall Height:
- 29 mm
- Warranty:
- 18 months
- China Rohs Regulation:
- X
- Ambient Air Temperature For Operation:
- -40-70 °C
- Cad Overall Depth:
- 33 mm
- Cap/Operator Or Lens Colour:
- orange
- Bezel Material:
- dark grey plastic
- Operator Profile:
- orange projecting, unmarked
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ik Degree Of Protection:
- IK05 EN 50102
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Product Or Component Type:
- head for illuminated push-button
- Electrical Composition Code:
- M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2
- Net Weight:
- 0.018 kg
- Mercury Free:
- Yes
- Device Presentation:
- basic sub-assemblies
- Protective Treatment:
- TC
- Sale Per Indivisible Quantity:
- 1
- Head Type:
- standard
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Standards:
- UL 508 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || JIS C8201-5-1 || EN/IEC 60947-1 || GB 14048.5 || JIS C8201-1
- Sustainable Offer Status:
- Green Premium product
- Mechanical Durability:
- 10000000 cycles
- Type Of Operator:
- spring return
- Group Of Product:
- proj push integral LED
- Circularity Profile:
- ENVEOLI1710010EN
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Operator Additional Information:
- with plain lens
