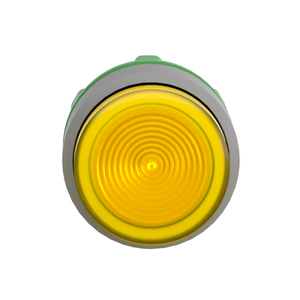

Schneider Electric ZB5AW153C0 Yellow Proj Illum Pb Head For Integr
Schneider Electric
$21.02
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed/replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color and by touch due to projecting element, minimizing errors in machine control. It is imapct, dust, water and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
- Shape Of Signaling Unit Head:
- round
- Net Weight:
- 0.018 kg
- Product Compatibility:
- universal LED
- Group Of Product:
- proj push integral LED
- Mechanical Durability:
- 10000000 cycles
- Ik Degree Of Protection:
- IK05 EN 50102
- Type Of Operator:
- spring return
- Ambient Air Temperature For Operation:
- -40-70 °C
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Electrical Composition Code:
- M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2
- Protective Treatment:
- TC
- Ambient Air Temperature For Storage:
- -40-70 °C
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Sale Per Indivisible Quantity:
- 1
- Operator Additional Information:
- with plain lens
- Main Group:
- illum push-button
- Overvoltage Category:
- class II IEC 60536
- Product Or Component Type:
- head for illuminated push-button
- Marking:
- unmarked
- Operator Profile:
- orange projecting, unmarked
- Bezel Material:
- plastic colour plated grey
- China Rohs Regulation:
- X
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Cap/Operator Or Lens Colour:
- orange
- Device Short Name:
- ZB5
- Mounting Diameter:
- 22 mm
- Cad Overall Height:
- 29 mm
- Ip Degree Of Protection:
- IP66 IEC 60529
- Cad Overall Width:
- 29 mm
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Reach Free Of Svhc:
- Yes
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Cad Overall Depth:
- 33 mm
- Toxic Heavy Metal Free:
- Yes
- Rohs Exemption Information:
- Yes
- Product Certifications:
- UL Listed || BV || GL || LROS (Lloyds register of shipping) || CSA || DNV
- Head Type:
- standard
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Range Of Product:
- Harmony XB5
- Mercury Free:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Standards:
- UL 508 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || JIS C8201-5-1 || EN/IEC 60947-1 || GB 14048.5 || JIS C8201-1
- Device Presentation:
- basic sub-assemblies
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
