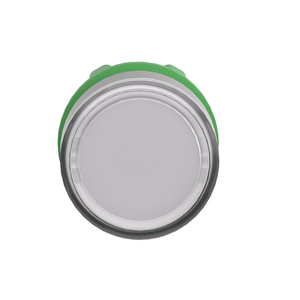

Schneider Electric ZB5AW313SC0 White Flush Illum Pb Head For Int Led
This illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed/replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illum. clear color and by touch due to flush element, minimizing errors in machine control. It is imapct, dust, water and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
- Shape Of Signaling Unit Head:
- round
- Bezel Material:
- plastic colour plated grey
- Electrical Composition Code:
- M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67
- Mechanical Durability:
- 10000000 cycles
- Type Of Operator:
- spring return
- Device Short Name:
- ZB5
- Cad Overall Height:
- 29 mm
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Product Certifications:
- DNV || LROS (Lloyds register of shipping) || CSA || GL || BV || UL Listed
- Reach Free Of Svhc:
- Yes
- Cap/Operator Or Lens Colour:
- white
- Overvoltage Category:
- class II IEC 60536
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- China Rohs Regulation:
- X
- Environmental Characteristic:
- high ambient lighting environment
- Net Weight:
- 0.017 kg
- Marking:
- unmarked
- Device Presentation:
- basic sub-assemblies
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Operator Additional Information:
- with grooved lens
- Operator Profile:
- white flush, unmarked
- Product Or Component Type:
- head for illuminated push-button
- Ambient Air Temperature For Storage:
- -40-70 °C
- Toxic Heavy Metal Free:
- Yes
- Standards:
- EN/IEC 60947-1 || EN/IEC 60947-5-4 || UL 508 || JIS C8201-5-1 || GB 14048.5 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
- Group Of Product:
- flush push integral LED
- Protective Treatment:
- TC
- Main Group:
- illum push-button
- Head Type:
- standard
- Cad Overall Width:
- 29 mm
- Cad Overall Depth:
- 30 mm
- Sale Per Indivisible Quantity:
- 1
- Ambient Air Temperature For Operation:
- -40-70 °C
- Ik Degree Of Protection:
- IK05 EN 50102
- Rohs Exemption Information:
- Yes
- Product Compatibility:
- universal LED
- Mercury Free:
- Yes
- Range Of Product:
- Harmony XB5
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Mounting Diameter:
- 22 mm
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
