Schneider Electric ZB5AW34 Illuminated Pushbutton He

Schneider Electric ZB5AW34 Illuminated Pushbutton He

Schneider Electric
SKU:
ZB5AW34
|
UPC:
3389110909951
Availability:
Contact us to confirm availability and lead times.
$18.60
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

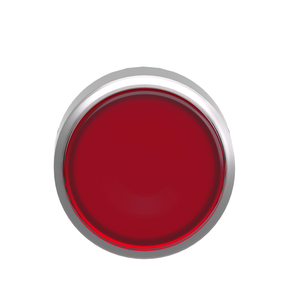

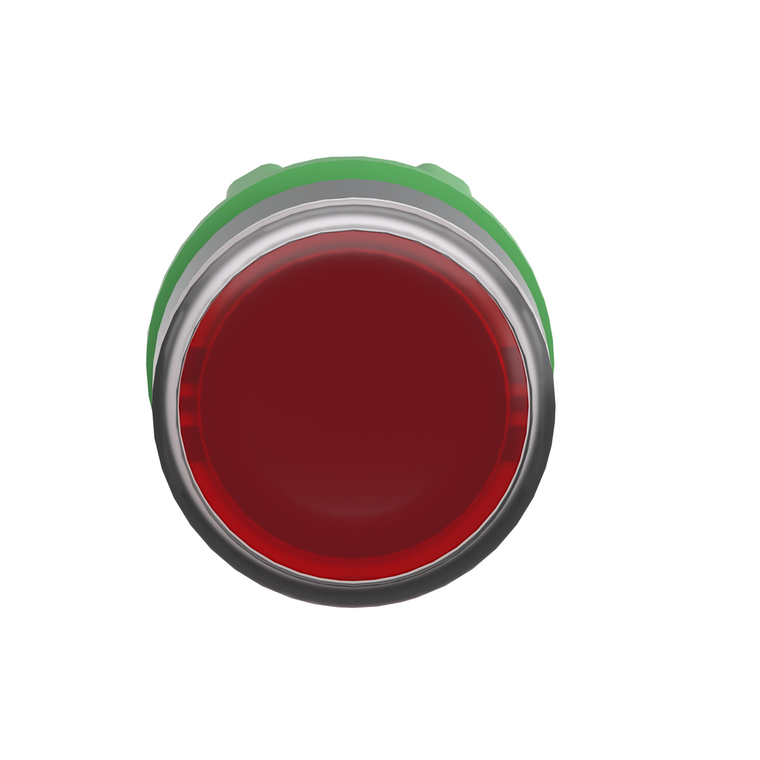

This red flush illuminated button head provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is very distinguishable visually at a distance thanks to illuminated, clear color and by touch due to flush element. It minimizes errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Additional Information
Bezel Material:
dark grey plastic
Station Name:
XALD 1...5 cut-outs || XALK 2...5 cut-outs
Sustainable Offer Status:
Green Premium product
Rohs Exemption Information:
Yes
Circularity Profile:
ENVEOLI1710010EN
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty:
18 months
Product Or Component Type:
head for illuminated push-button
Environmental Disclosure:
ENVPEP1710010EN
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Main Group:
illum push-button
Shape Of Signaling Unit Head:
round
Overvoltage Category:
class II IEC 60536
Cad Overall Width:
29 mm
Ambient Air Temperature For Operation:
-40-55 °C
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Range Of Product:
Harmony XB5
Marking:
unmarked
Head Type:
standard
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Cap/Operator Or Lens Colour:
red
Protective Treatment:
TC
Standards:
JIS C8201-5-1 || UL 508 || GB 14048.5 || IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-1 || JIS C8201-1
Net Weight:
0.018 kg
China Rohs Regulation:
X
Mercury Free:
Yes
Operator Additional Information:
with plain lens
Ik Degree Of Protection:
IK05 IEC 62262
Group Of Product:
flush push BA9s
Product Compatibility:
BA 9s
Electrical Composition Code:
M7 6 single front mounting BA 9s || M8 6 single and double front mounting BA 9s || M9 2 single front mounting BA 9s and transformer || MF2 2 single front mounting BA 9s
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Cad Overall Height:
29 mm
Operator Profile:
red flush, unmarked
Device Short Name:
ZB5
Ambient Air Temperature For Storage:
-40-70 °C
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Type Of Operator:
spring return
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 || IP69 || IP69K
Cad Overall Depth:
32 mm
Mounting Diameter:
22 mm
Device Presentation:
basic sub-assemblies
Mechanical Durability:
10000000 cycles
Sale Per Indivisible Quantity:
1
Product Certifications:
GL || CSA || UL Listed || BV || LROS (Lloyds register of shipping) || DNV
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
