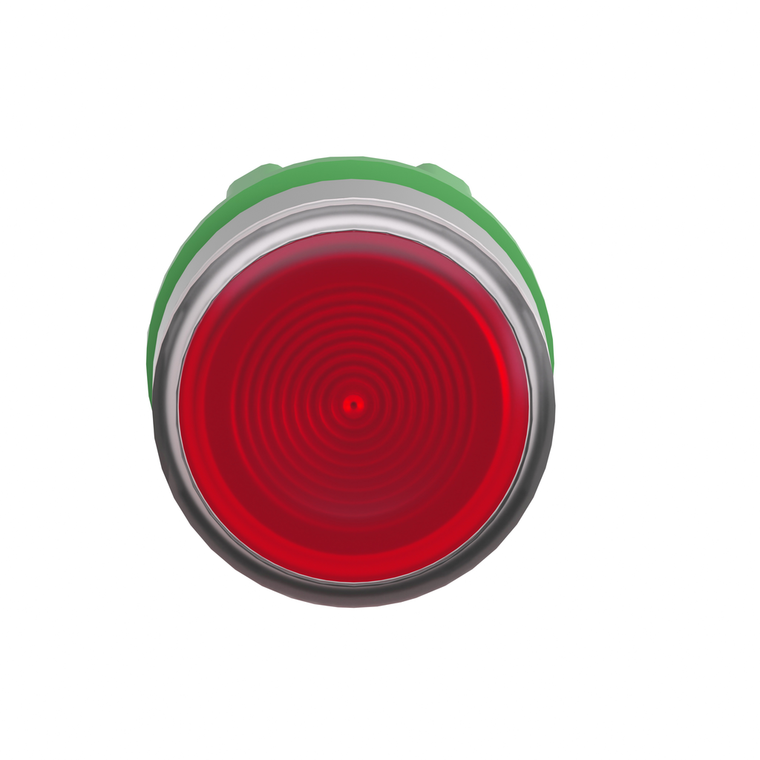

Schneider Electric ZB5AW343SC0 Red Flush Illum Pb Head For Int Led G

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ZB5AW343SC0 Red Flush Illum Pb Head For Int Led G

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5AW343SC0

UPC:

3606489770006

MPN:

Condition:

New

Product Or Component Type:

head for illuminated push-button

Operator Profile:

red flush, unmarked

Reach Free Of Svhc:

Yes

Device Short Name:

ZB5

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Head Type:

standard

Cap/Operator Or Lens Colour:

red

Net Weight:

0.017 kg

Mercury Free:

Yes

China Rohs Regulation:

X

Cad Overall Height:

29 mm

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Range Of Product:

Harmony XB5

Product Compatibility:

universal LED

Protective Treatment:

TC

Cad Overall Width:

29 mm

Ik Degree Of Protection:

IK05 EN 50102

Device Presentation:

basic sub-assemblies

Electrical Composition Code:

M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2

Product Certifications:

GL || CSA || BV || UL Listed || DNV || LROS (Lloyds register of shipping)

Sale Per Indivisible Quantity:

1

Operator Additional Information:

with grooved lens

Group Of Product:

flush push integral LED

Mechanical Durability:

10000000 cycles

Bezel Material:

plastic colour plated grey

Toxic Heavy Metal Free:

Yes

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Shape Of Signaling Unit Head:

round

Type Of Operator:

spring return

Ip Degree Of Protection:

IP66 IEC 60529 || IP67

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Marking:

unmarked

Main Group:

illum push-button

Environmental Characteristic:

high ambient lighting environment

Ambient Air Temperature For Operation:

-40-70 °C

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Station Name:

XALD 1...5 cut-outs || XALK 2...5 cut-outs

Rohs Exemption Information:

Yes

Cad Overall Depth:

30 mm

Mounting Diameter:

22 mm

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Standards:

EN/IEC 60947-1 || UL 508 || EN/IEC 60947-5-4 || JIS C8201-5-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || GB 14048.5 || JIS C8201-1

Overvoltage Category:

class II IEC 60536

Ambient Air Temperature For Storage:

-40-70 °C
