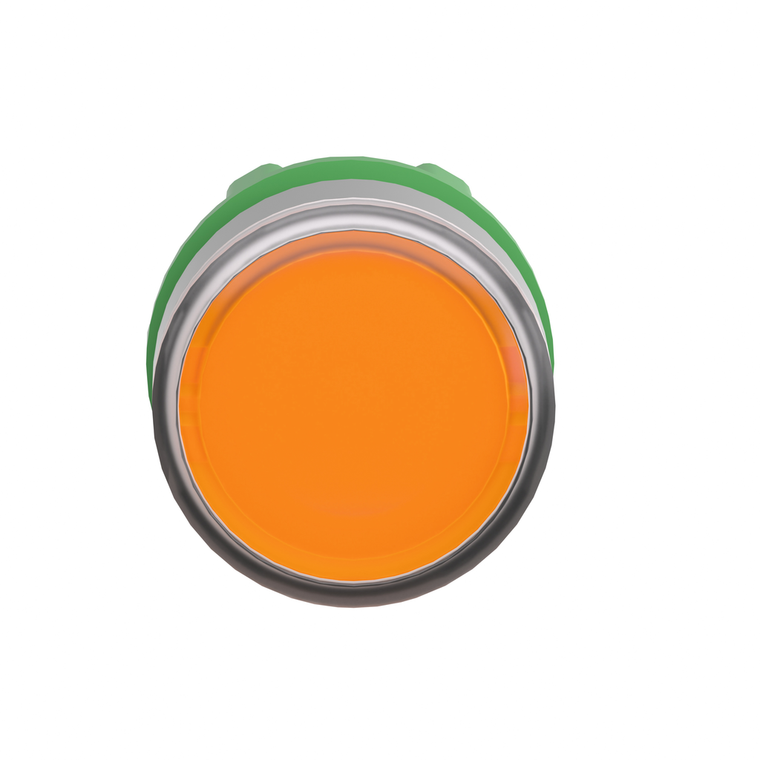

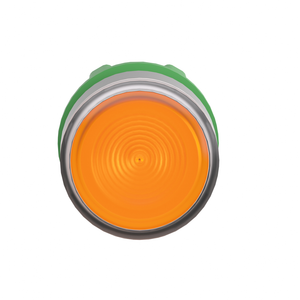

Schneider Electric ZB5AW353C0 Yellow Flush Illum Pb Head For Int Le
This illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed/replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illum. clear color and by touch due to flush element, minimizing errors in machine control. It is imapct, dust, water and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
- Ambient Air Temperature For Storage:
- -40-70 °C
- Mechanical Durability:
- 10000000 cycles
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Mounting Diameter:
- 22 mm
- Type Of Operator:
- spring return
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Head Type:
- standard
- Cad Overall Height:
- 29 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Reach Free Of Svhc:
- Yes
- Cad Overall Width:
- 29 mm
- Rohs Exemption Information:
- Yes
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Cap/Operator Or Lens Colour:
- orange
- Shape Of Signaling Unit Head:
- round
- Overvoltage Category:
- class II IEC 60536
- Ambient Air Temperature For Operation:
- -40-70 °C
- Device Short Name:
- ZB5
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Operator Profile:
- orange flush, unmarked
- Product Or Component Type:
- head for illuminated push-button
- Product Certifications:
- BV || CSA || DNV || UL Listed || LROS (Lloyds register of shipping) || GL
- Toxic Heavy Metal Free:
- Yes
- Mercury Free:
- Yes
- Device Presentation:
- basic sub-assemblies
- Marking:
- unmarked
- Net Weight:
- 0.017 kg
- Electrical Composition Code:
- M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2
- Product Compatibility:
- universal LED
- Range Of Product:
- Harmony XB5
- Sale Per Indivisible Quantity:
- 1
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Ik Degree Of Protection:
- IK05 EN 50102
- Bezel Material:
- plastic colour plated grey
- Operator Additional Information:
- with plain lens
- Main Group:
- illum push-button
- Standards:
- UL 508 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || GB 14048.5 || JIS C8201-5-1 || JIS C8201-1
- Protective Treatment:
- TC
- Group Of Product:
- flush push integral LED
- Cad Overall Depth:
- 30 mm
- China Rohs Regulation:
- X
