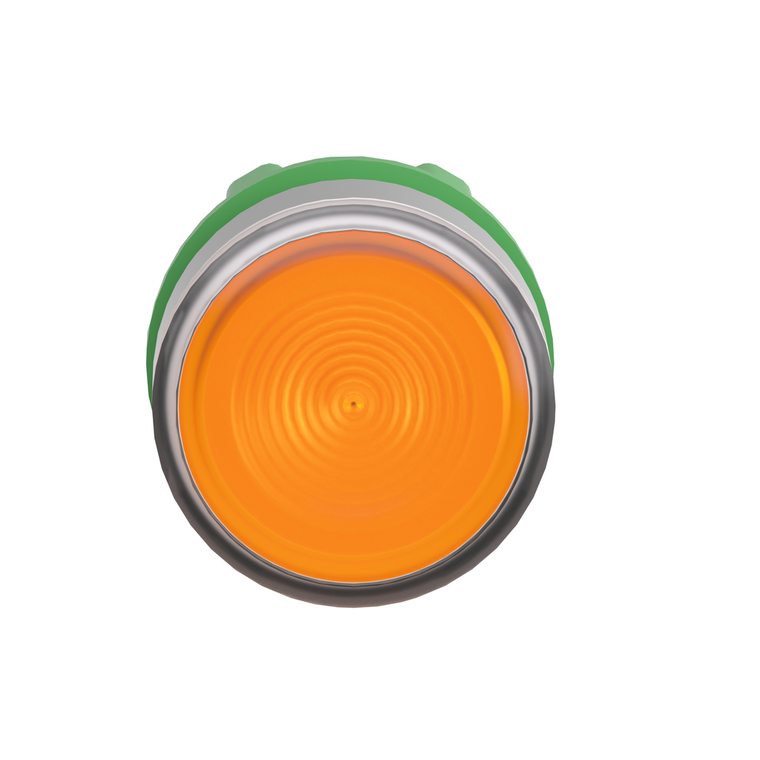

Schneider Electric ZB5AW353SC0 Yellow Flush Illum Pb Head For Int Le

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB5AW353SC0 Yellow Flush Illum Pb Head For Int Le

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5AW353SC0

UPC:

3606489770082

MPN:

Condition:

New

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Overvoltage Category:

class II IEC 60536

Toxic Heavy Metal Free:

Yes

Station Name:

XALD 1...5 cut-outs || XALK 2...5 cut-outs

Protective Treatment:

TC

Cad Overall Height:

29 mm

Operator Profile:

orange flush, unmarked

Ip Degree Of Protection:

IP66 IEC 60529 || IP67

Cad Overall Width:

29 mm

Product Or Component Type:

head for illuminated push-button

Operator Additional Information:

with grooved lens

Product Compatibility:

universal LED

Mercury Free:

Yes

Sale Per Indivisible Quantity:

1

Group Of Product:

flush push integral LED

Product Certifications:

CSA || BV || DNV || LROS (Lloyds register of shipping) || UL Listed || GL

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Mechanical Durability:

10000000 cycles

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Main Group:

illum push-button

Cad Overall Depth:

30 mm

Type Of Operator:

spring return

Standards:

EN/IEC 60947-1 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || UL 508 || GB 14048.5 || JIS C8201-5-1 || JIS C8201-1

China Rohs Regulation:

X

Electrical Composition Code:

M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2

Rohs Exemption Information:

Yes

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Range Of Product:

Harmony XB5

Net Weight:

0.017 kg

Ik Degree Of Protection:

IK05 EN 50102

Bezel Material:

plastic colour plated grey

Ambient Air Temperature For Operation:

-40-70 °C

Reach Free Of Svhc:

Yes

Device Presentation:

basic sub-assemblies

Cap/Operator Or Lens Colour:

orange

Environmental Characteristic:

high ambient lighting environment

Head Type:

standard

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Shape Of Signaling Unit Head:

round

Marking:

unmarked

Mounting Diameter:

22 mm

Ambient Air Temperature For Storage:

-40-70 °C

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Device Short Name:

ZB5
