Schneider Electric ZB5AW36 Illuminated Pushbutton He
Schneider Electric
$18.60
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB5AW36 Illuminated Pushbutton He

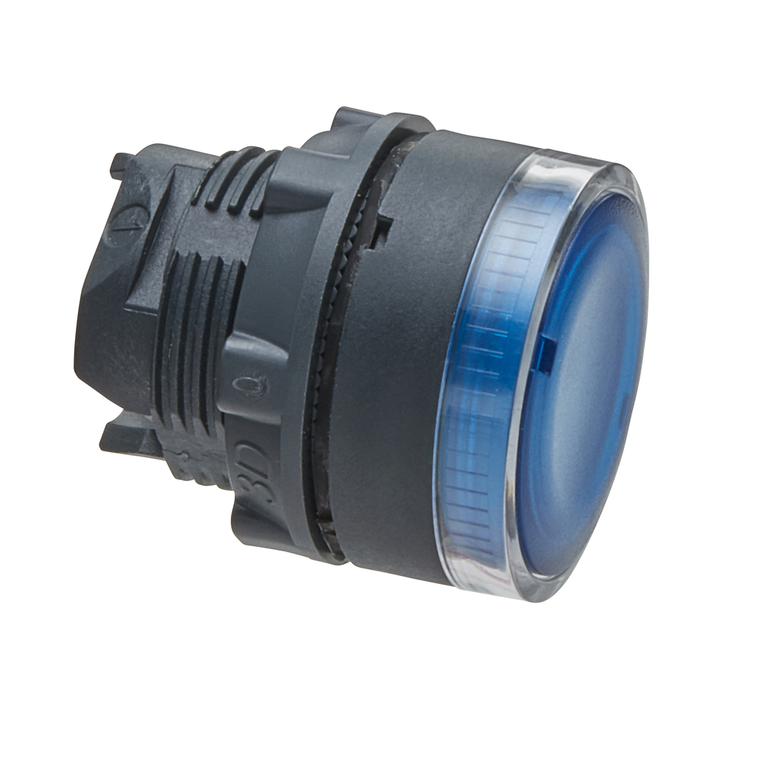

This blue flush illuminated button head provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is very distinguishable visually at a distance thanks to illuminated, clear color and by touch due to flush element. It minimizes errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
- Device Short Name:
- ZB5
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Standards:
- UL 508 || JIS C8201-5-1 || GB 14048.5 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || JIS C8201-1
- Range Of Product:
- Harmony XB5
- Ambient Air Temperature For Storage:
- -40-70 °C
- Mounting Diameter:
- 22 mm
- Product Compatibility:
- BA 9s
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Device Presentation:
- basic sub-assemblies
- Environmental Disclosure:
- ENVPEP1710010EN
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Electrical Composition Code:
- M7 6 single front mounting BA 9s || M8 6 single and double front mounting BA 9s || M9 2 single front mounting BA 9s and transformer || MF2 2 single front mounting BA 9s
- Warranty:
- 18 months
- Head Type:
- standard
- Ik Degree Of Protection:
- IK05 EN 50102
- Ambient Air Temperature For Operation:
- -40-55 °C
- Overvoltage Category:
- class II IEC 60536
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Cad Overall Depth:
- 32 mm
- Mechanical Durability:
- 10000000 cycles
- Type Of Operator:
- spring return
- Sale Per Indivisible Quantity:
- 1
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- China Rohs Regulation:
- X
- Cad Overall Width:
- 29 mm
- Cap/Operator Or Lens Colour:
- blue
- Product Certifications:
- GL || CSA || LROS (Lloyds register of shipping) || BV || DNV || UL Listed
- Protective Treatment:
- TC
- Shape Of Signaling Unit Head:
- round
- Sustainable Offer Status:
- Green Premium product
- Mercury Free:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Bezel Material:
- dark grey plastic
- Operator Profile:
- blue flush, unmarked
- Circularity Profile:
- ENVEOLI1710010EN
- Group Of Product:
- flush push BA9s
- Rohs Exemption Information:
- Yes
- Product Or Component Type:
- head for illuminated push-button
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Net Weight:
- 0.018 kg
- Operator Additional Information:
- with plain lens
- Main Group:
- illum push-button
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Marking:
- unmarked
- Cad Overall Height:
- 29 mm
