Schneider Electric ZB5AW363 Illuminated Pushbutton He

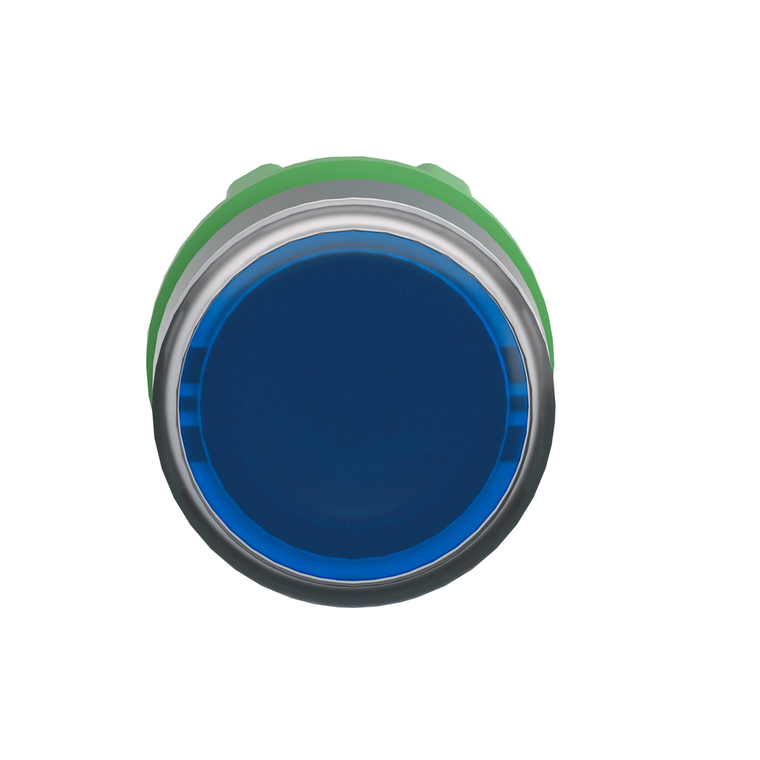

This Harmony XB5, plain lens illuminated blue flush head for universal LED operates with a spring return / impulse mechanism. This illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illuminated, clear color and by touch due to flush element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.
- Operator Profile:
- blue flush, unmarked
- Rohs Exemption Information:
- Yes
- Product Or Component Type:
- head for illuminated push-button
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Electrical Composition Code:
- M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Product Compatibility:
- universal LED
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Bezel Material:
- dark grey plastic
- Cad Overall Width:
- 29 mm
- Marking:
- unmarked
- Device Presentation:
- basic sub-assemblies
- Cad Overall Depth:
- 30 mm
- Mercury Free:
- Yes
- Standards:
- IEC 60947-5-4 || JIS C8201-5-1 || CSA C22.2 No 14 || IEC 60947-1 || IEC 60947-5-1 || UL 508 || GB 14048.5 || JIS C8201-1
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Sale Per Indivisible Quantity:
- 1
- Sustainable Offer Status:
- Green Premium product
- Mechanical Durability:
- 10000000 cycles
- Warranty:
- 18 months
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Circularity Profile:
- ENVEOLI1710010EN
- Toxic Heavy Metal Free:
- Yes
- Product Certifications:
- LROS (Lloyds register of shipping) || DNV || GL || BV || CSA || UL Listed
- Device Short Name:
- ZB5
- Cap/Operator Or Lens Colour:
- blue
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Overvoltage Category:
- class II IEC 60536
- Reach Free Of Svhc:
- Yes
- Main Group:
- illum push-button
- Shape Of Signaling Unit Head:
- round
- Head Type:
- standard
- Ik Degree Of Protection:
- IK05 IEC 62262
- China Rohs Regulation:
- X
- Cad Overall Height:
- 29 mm
- Mounting Diameter:
- 22 mm
- Range Of Product:
- Harmony XB5
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Protective Treatment:
- TC
- Ambient Air Temperature For Storage:
- -40-70 °C
- Group Of Product:
- flush push integral LED
- Net Weight:
- 0.017 kg
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Environmental Disclosure:
- ENVPEP1710010EN
- Type Of Operator:
- spring return
- Operator Additional Information:
- with plain lens
- Ambient Air Temperature For Operation:
- -40-70 °C
