Schneider Electric ZB5AW543 Illuminated Pushbutton He

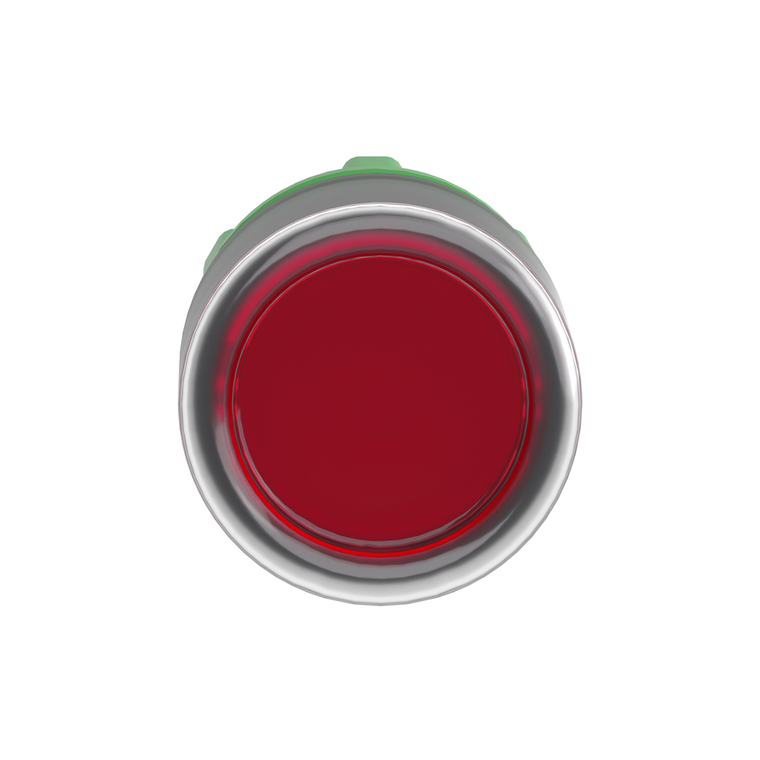

This red flush button head with clear boot provides an ergonomic interface for controlling your machines. It provides also a simple solution to prevent dirt and contaminants. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illuminated head and clear colors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
- Product Or Component Type:
- head for illuminated push-button
- Rohs Exemption Information:
- Yes
- Mechanical Durability:
- 10000000 cycles
- Shape Of Signaling Unit Head:
- round
- Standards:
- EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || JIS C8201-5-1 || GB 14048.5 || UL 508 || EN/IEC 60947-5-4 || JIS C8201-1
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Type Of Operator:
- spring return
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- China Rohs Regulation:
- X
- Product Compatibility:
- universal LED
- Net Weight:
- 0.019 kg
- Protective Treatment:
- TC
- Ambient Air Temperature For Operation:
- -40-70 °C
- Electrical Composition Code:
- M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2
- Head Type:
- standard
- Environmental Disclosure:
- ENVPEP1710010EN
- Cad Overall Width:
- 30 mm
- Device Short Name:
- ZB5
- Overvoltage Category:
- class II IEC 60536
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Ambient Air Temperature For Storage:
- -40-70 °C
- Ik Degree Of Protection:
- IK05 EN 50102
- Mounting Diameter:
- 22 mm
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67
- Sustainable Offer Status:
- Green Premium product
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Sale Per Indivisible Quantity:
- 1
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Operator Additional Information:
- clear boot
- Operator Profile:
- red flush, unmarked
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Device Presentation:
- basic sub-assemblies
- Product Certifications:
- UL Listed || CSA || LROS (Lloyds register of shipping) || GL || DNV || BV
- Main Group:
- illum push-button
- Cap/Operator Or Lens Colour:
- red
- Circularity Profile:
- ENVEOLI1710010EN
- Warranty:
- 18 months
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Bezel Material:
- dark grey plastic
- Range Of Product:
- Harmony XB5
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Marking:
- unmarked
- Cad Overall Height:
- 30 mm
- Group Of Product:
- flush push integral LED
- Cad Overall Depth:
- 37 mm
- Mercury Free:
- Yes
