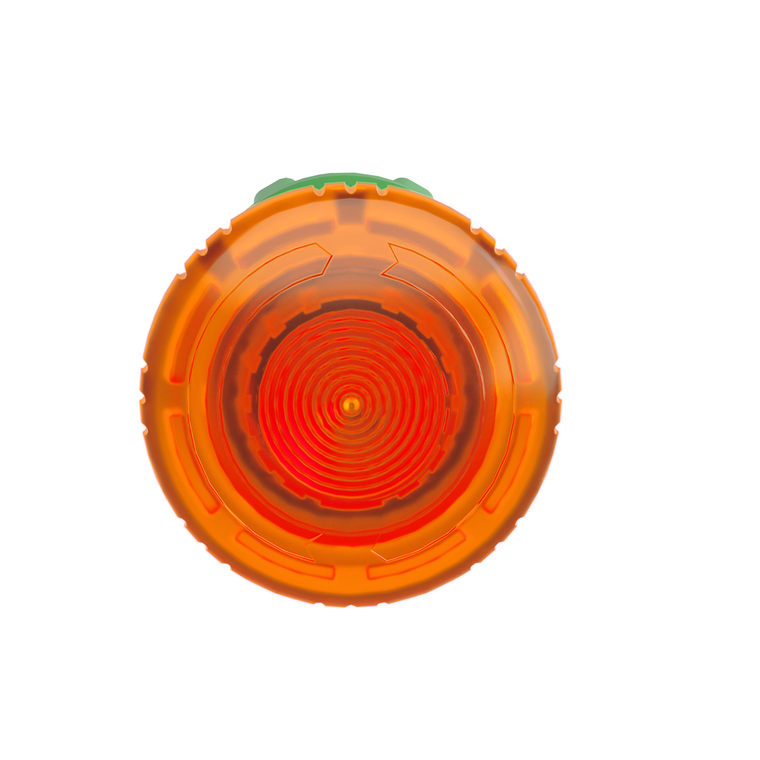

Schneider Electric ZB5AW753 Illuminated Mushroom Head Turn To Releas

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ZB5AW753 Illuminated Mushroom Head Turn To Releas

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5AW753

UPC:

3389110666861

MPN:

Condition:

New

Station Name:

XALD 1 cut-out || XALK 1 cut-out

Mounting Diameter:

22 mm

Device Short Name:

ZB5

Range Of Product:

Harmony XB5

Sustainable Offer Status:

Green Premium product

Net Weight:

0.022 kg

Reset:

turn to release

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Reach Free Of Svhc:

Yes

Cap/Operator Or Lens Colour:

orange

Product Compatibility:

universal LED

Bezel Material:

dark grey plastic

Electrical Composition Code:

M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED || M3 4 single front mounting integral LED || M4 4 single and d

Product Certifications:

UL Listed || CSA || BV || GL || LROS (Lloyds register of shipping) || DNV

Warranty:

18 months

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Overvoltage Category:

class II IEC 60536

Type Of Operator:

latching

Circularity Profile:

ENVEOLI1710010EN

Mercury Free:

Yes

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Toxic Heavy Metal Free:

Yes

Cad Overall Depth:

50 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Mechanical Durability:

300000 cycles

Cad Overall Height:

40 mm

Environmental Disclosure:

ENVPEP1710010EN

China Rohs Regulation:

X

Standards:

GB 14048.5 || UL 508 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C8201-1

Group Of Product:

mush. turn to release illum

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Ambient Air Temperature For Storage:

-40-70 °C

Cad Overall Width:

40 mm

Protective Treatment:

TC

Ambient Air Temperature For Operation:

-40-70 °C

Marking:

unmarked

Operator Profile:

orange mushroom Ø 40 mm, unmarked

Product Or Component Type:

head for illuminated push-button

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Sale Per Indivisible Quantity:

1

Head Type:

standard

Ip Degree Of Protection:

IP66 IEC 60529 || IP69 || IP69K

Ik Degree Of Protection:

IK05 EN 50102

Shape Of Signaling Unit Head:

round

Device Presentation:

basic sub-assemblies

Rohs Exemption Information:

Yes

Main Group:

mushroom head
