Schneider Electric ZB5AW7A1720 Plastic Double Headed Pushbuttons With P

Schneider Electric ZB5AW7A1720 Plastic Double Headed Pushbuttons With P

Schneider Electric
SKU:
ZB5AW7A1720
|
UPC:
3389119043335
Availability:
Contact us to confirm availability and lead times.
$68.40
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

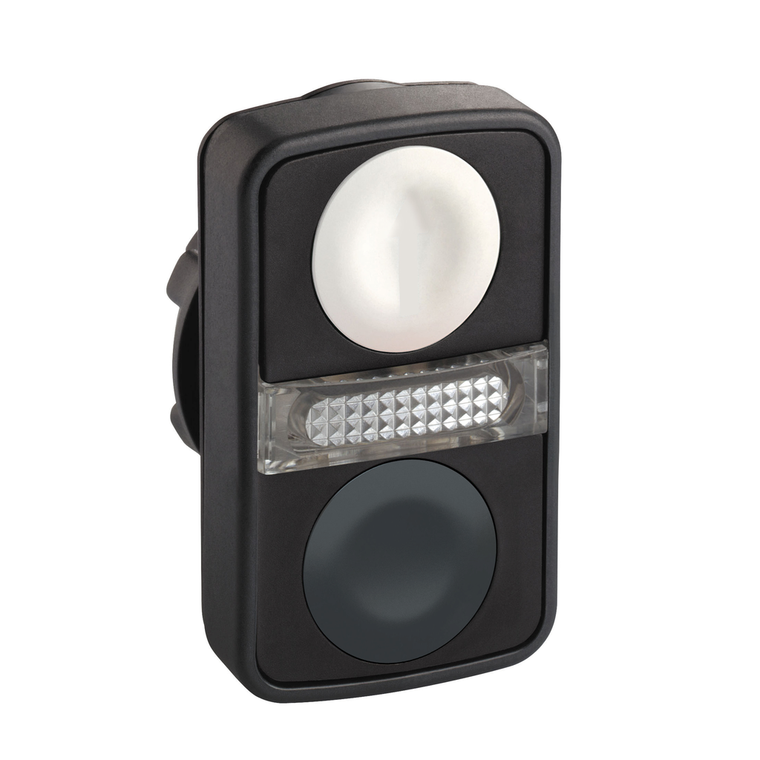

This double head has 1 white, 1 black button and 1 central white pilot light, it provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is distinguishable visually at a distance thanks to its pilot light, clear colors and by touch due to flush elements. It minimizes errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Additional Information
Mercury Free:
Yes
Bezel Material:
dark grey plastic
Mounting Diameter:
22 mm
Device Short Name:
ZB5
Operator Profile:
black flush, unmarked || white flush, unmarked
Ambient Air Temperature For Storage:
-40-70 °C
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Toxic Heavy Metal Free:
Yes
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Electrical Shock Protection Class:
class II IEC 60536
Operators Description:
white unmarked - black unmarked
Circularity Profile:
ENVEOLI1710010EN
Product Certifications:
DNV || BV || GL || LROS (Lloyds register of shipping) || CSA || UL Listed
Cad Overall Width:
30 mm
Sustainable Offer Status:
Green Premium product
Type Of Operator:
spring return
China Rohs Regulation:
X
Warranty:
18 months
Environmental Disclosure:
ENVPEP1710010EN
Cad Overall Depth:
30 mm
Head Type:
standard
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Station Name:
XALD 1 cut-out
Device Presentation:
basic sub-assemblies
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Ip Degree Of Protection:
IP66 || IP67 || IP69 || IP69K
Shape Of Signaling Unit Head:
rectangular
Ambient Air Temperature For Operation:
-25-70 °C
Rohs Exemption Information:
Yes
Reach Free Of Svhc:
Yes
Product Or Component Type:
head for illuminated double-headed push-button
Standards:
IEC 60947-1 || UL 508 || JIS C8201-5-1 || IEC 60947-5-4 || CSA C22.2 No 14 || IEC 60947-5-1 || JIS C8201-1
Range Of Product:
Harmony XB5
Cad Overall Height:
50 mm
Sale Per Indivisible Quantity:
1
Ik Degree Of Protection:
IK05 IEC 50102
Net Weight:
0.023 kg
Product Compatibility:
integral LED
Operator Profile:
2 flush push-buttons - 1 central pilot light
Mechanical Durability:
1000000 cycles
