Schneider Electric ZB5AW7A1724 Plastic Double Headed Pushbuttons With P

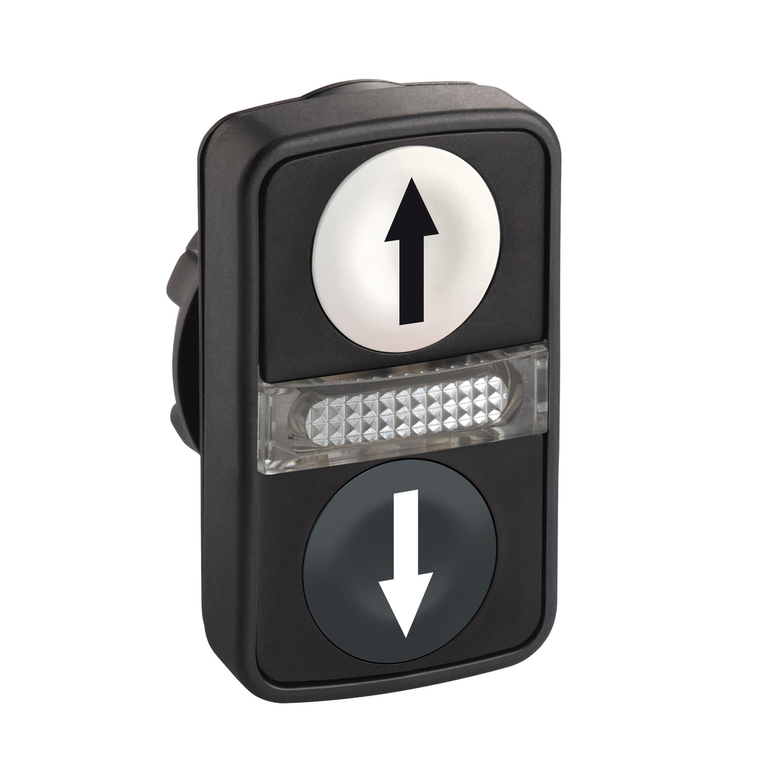

This Harmony XB5, double head has 1 white, 1 black button and 1 central white pilot light, operates with a spring return / impulse mechanism. It is marked with "up arrow" / "down arrow" symbols. This double head provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks its pilot light, clear colors and by touch due to flush elements, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
- Product Certifications:
- BV || CSA || DNV || GL || UL Listed || LROS (Lloyds register of shipping)
- Warranty:
- 18 months
- Mechanical Durability:
- 1000000 cycles
- Head Type:
- standard
- Ambient Air Temperature For Storage:
- -40-70 °C
- Operators Description:
- white ''up arrow'' - black ''down arrow''
- Cad Overall Width:
- 30 mm
- Mounting Diameter:
- 22 mm
- Station Name:
- XALD 1 cut-out
- Ip Degree Of Protection:
- IP66 || IP67 || IP69 || IP69K
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Ambient Air Temperature For Operation:
- -25-70 °C
- Toxic Heavy Metal Free:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- China Rohs Regulation:
- X
- Bezel Material:
- dark grey plastic
- Sustainable Offer Status:
- Green Premium product
- Standards:
- IEC 60947-1 || UL 508 || JIS C8201-5-1 || IEC 60947-5-4 || CSA C22.2 No 14 || IEC 60947-5-1 || JIS C8201-1
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Circularity Profile:
- ENVEOLI1710010EN
- Rohs Exemption Information:
- Yes
- Product Compatibility:
- integral LED
- Range Of Product:
- Harmony XB5
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Product Or Component Type:
- head for illuminated double-headed push-button
- Shape Of Signaling Unit Head:
- rectangular
- Reach Free Of Svhc:
- Yes
- Operator Profile:
- white flush, up arrow black) || black flush, down arrow white)
- Device Short Name:
- ZB5
- Environmental Disclosure:
- ENVPEP1710010EN
- Operator Profile:
- 2 flush push-buttons - 1 central pilot light
- Electrical Shock Protection Class:
- class II IEC 60536
- Device Presentation:
- basic sub-assemblies
- Mercury Free:
- Yes
- Type Of Operator:
- spring return
- Sale Per Indivisible Quantity:
- 1
- Cad Overall Depth:
- 30 mm
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Colour Of Marking:
- black marking when white caps
- Net Weight:
- 0.023 kg
- Cad Overall Height:
- 50 mm
- Ik Degree Of Protection:
- IK05 IEC 50102
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
