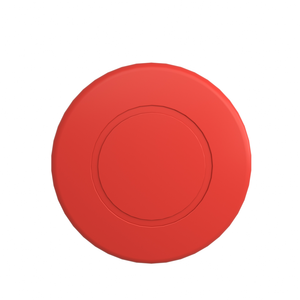

Schneider Electric ZB5AX84 Emergency Stop Head Red Push Pull 60Mm
Schneider Electric
$56.50
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB5, emergency stop / shutdown 60mm mushroom red button head operates with a latched push-pull mechanism. This emergency stop / shutdown button head also called EMS (Emergency Machine Stop) and EMO (Emergency Off) provides an ergonomic interface for controlling your machines. It is easily installed on compatible complete emergency stop and switching off pushbuttons. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 60mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Net Weight:
- 0.05 kg
- Overvoltage Category:
- class II IEC 60536
- Type Of Operator:
- trigger action and mechanical latching
- Station Name:
- XALD 1 cut-out || XALK 1 cut-out
- Range Of Product:
- Harmony XB5
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Cad Overall Depth:
- 56 mm
- Sustainable Offer Status:
- Green Premium product
- Toxic Heavy Metal Free:
- Yes
- Electrical Composition Code:
- C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting || C10 4 single and double front mounting
- Sale Per Indivisible Quantity:
- 1
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Reset:
- push-pull
- Product Certifications:
- LROS (Lloyds register of shipping) || CSA || UL Listed || GL || DNV || BV
- Ambient Air Temperature For Storage:
- -40-70 °C
- Reach Free Of Svhc:
- Yes
- China Rohs Regulation:
- X
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Product Or Component Type:
- head for emergency stop push-button
- Rohs Exemption Information:
- Yes
- Mercury Free:
- Yes
- Cad Overall Height:
- 60 mm
- Compatibility Code:
- ZB5
- Cad Overall Width:
- 60 mm
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Device Short Name:
- ZB5
- Mechanical Durability:
- 300000 cycles
- Device Presentation:
- basic element
- Mounting Diameter:
- 22 mm
- Environmental Disclosure:
- ENVPEP1710010EN
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Head Type:
- standard
- Bezel Material:
- dark grey plastic
- Shape Of Signaling Unit Head:
- round
- Warranty:
- 18 months
- Circularity Profile:
- ENVEOLI1710010EN
- Protective Treatment:
- TH
- Product Destination:
- emergency stop push-button
- Standards:
- JIS C8201-5-1 || IEC 60947-5-5 || IEC 60364-5-53 || IEC 60204-1 || GB 14048.5 || UL 508 || IEC 60947-5-4 || ISO 13850 || CSA C22.2 No 14 || IEC 60947-1 || IEC 60947-5-1 || JIS C8201-1
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ik Degree Of Protection:
- IK03 IEC 50102
- Ambient Air Temperature For Operation:
- -40-70 °C
- Operator Profile:
- red mushroom à 60 mm, unmarked
- Datasheet:
- View
