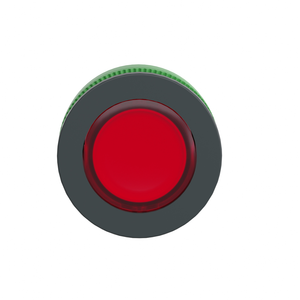

Schneider Electric ZB5FA4 Flush Mounted Red Flush Caps Pushbutton

Schneider Electric ZB5FA4 Flush Mounted Red Flush Caps Pushbutton

Schneider Electric
SKU:
ZB5FA4
|
UPC:
3606481339102
Availability:
Contact us to confirm availability and lead times.
$13.30
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It comes with antimicrobial characteristics. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
Additional Information
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Standards:
IEC 60947-5-4 || CSA C22.2 No 14 || IEC 60947-1 || UL 508 || JIS C8201-5-1 || IEC 60947-5-1 || JIS C8201-1 || ISO 21702 || ISO 22196:2011
Mechanical Durability:
10000000 cycles
Mercury Free:
Yes
Sale Per Indivisible Quantity:
1
Product Or Component Type:
head for non-illuminated push-button
Ik Degree Of Protection:
IK03 IEC 50102
Ambient Air Temperature For Operation:
-40-70 °C
Sustainable Offer Status:
Green Premium product
Warranty:
18 months
Shape Of Signaling Unit Head:
round
Overvoltage Category:
class II IEC 60536
Mounting Diameter:
30.5 mm
Protective Treatment:
TH
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Electrical Composition Code:
C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
Product Certifications:
UL Listed || DNV || GL || CSA || LROS (Lloyds register of shipping) || BV
Device Short Name:
ZB5
Range Of Product:
Harmony XB5
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Vibration Resistance:
5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
Bezel Material:
dark grey plastic
Cad Overall Depth:
30 mm
Circularity Profile:
ENVEOLI1710010EN
Net Weight:
0.03 kg
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Rohs Exemption Information:
Yes
Product Compatibility:
ZBYF... || ZBZF32 || ZBZF33 || ZB5AZ
Cad Overall Width:
37 mm
Head Type:
built-in-flush
China Rohs Regulation:
X
Type Of Operator:
spring return
Device Presentation:
basic element
Cad Overall Height:
37 mm
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Operator Profile:
red flush, unmarked
Environmental Disclosure:
ENVPEP1710010EN
Ambient Air Temperature For Storage:
-40-70 °C
